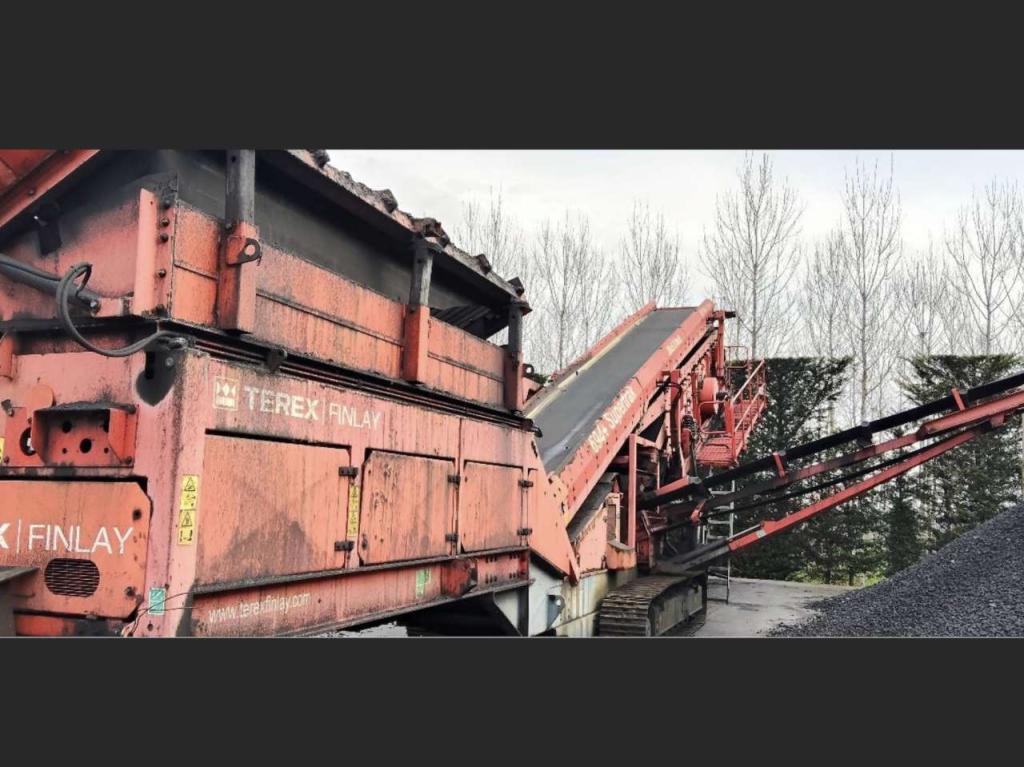

Terex - Finlay 694+

- 6.1 x 1.52 m three-deck vibrating screen with mesh to be specified based on requirements and the
type of material to be processed; hydraulic inclination adjustment
- Diesel/hydraulic power unit driven by a 130 HP liquid-cooled Cat engine
capable of powering all onboard equipment, with pre-filter and scavenger system
- loading hopper with bar-type pre-selection grid, featuring hydraulic tilting operated
via radio-controlled remote. Capacity approx. 8 m³
- variable-speed feed conveyor with infinitely variable hydraulic control.
Belt width 1200 mm.
- Main conveyor belt leading to the screen - belt width 1200 mm.
- Hydraulic tensioning of the lower deck screens; quick-release fastening system for the
upper decks (quick wedge);
- Fine material discharge conveyor with a belt width of 1200 mm. Hydraulic
opening/closing mechanism to switch between working and transport positions.
Discharge height 5200 mm. Storage capacity approx. 260 m³

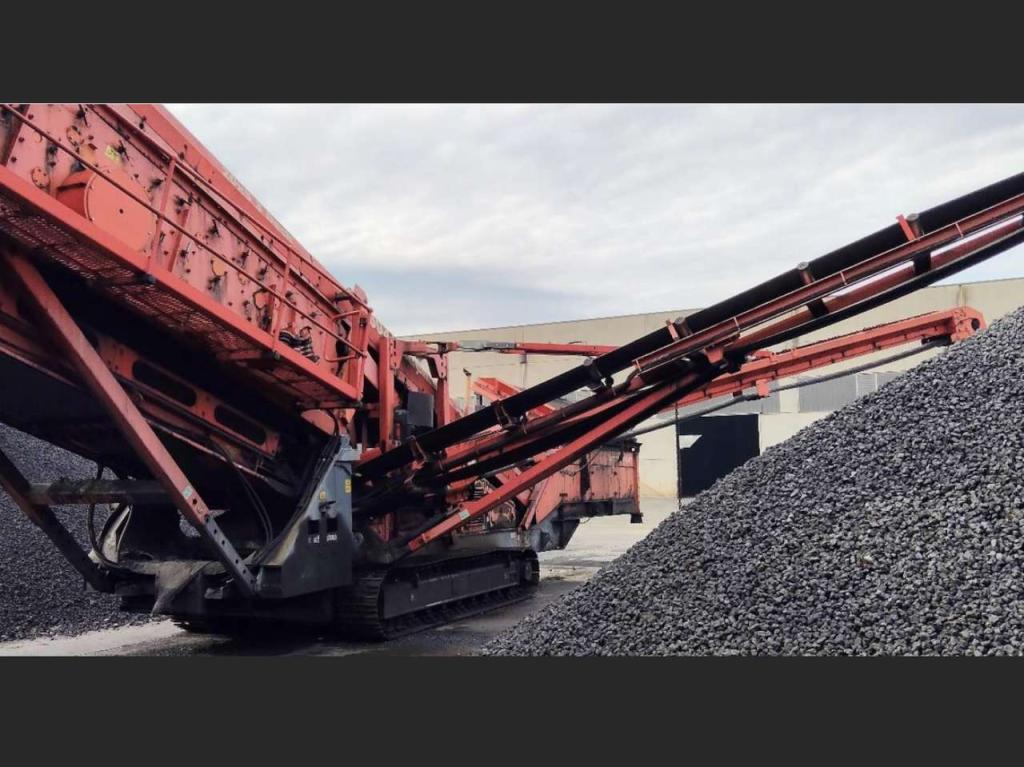

- Side discharge belts:
• for oversize material: herringbone belt 500 mm wide with side rails.
Speed control. Hydraulic opening/closing mechanism to switch from
working position to transport position and vice versa. Working angle variable between 20°
and 70°. Discharge height variable 4.4–5.4 m. Storage capacity approx. 152 m³
• of the two intermediate products: a herringbone conveyor belt 800 mm wide.
Speed control. Hydraulic opening/closing mechanism to switch between
working and transport positions. Discharge height 4710 mm.
Storage capacity approx. 193 m³

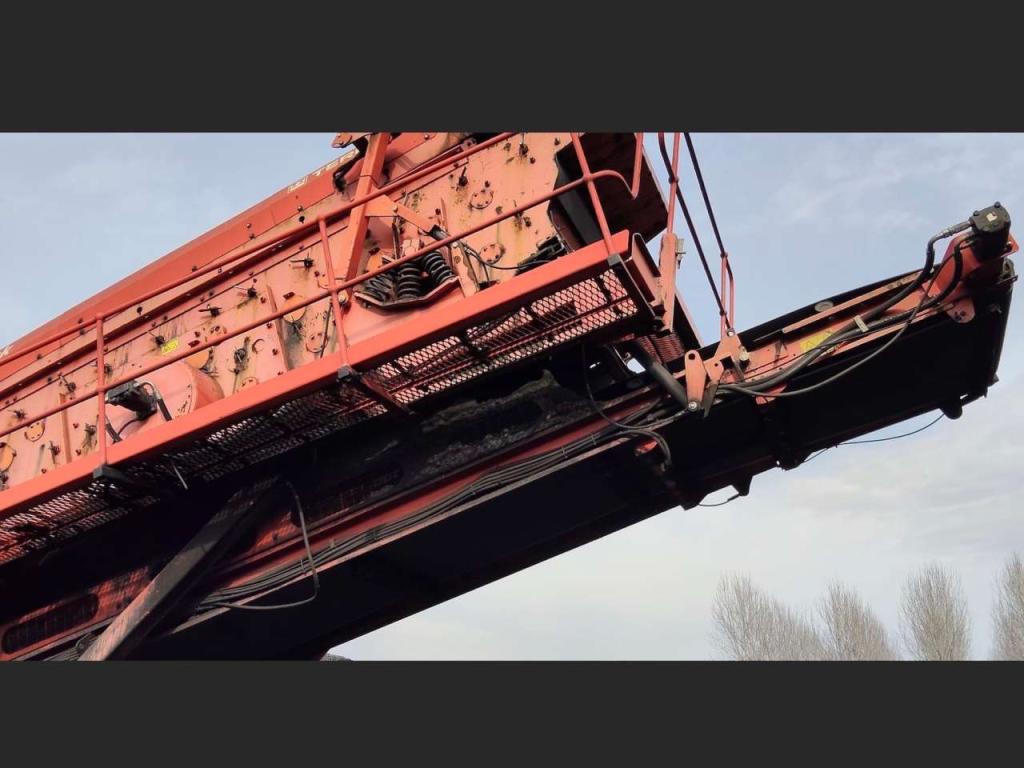

- walkway around the screen with access ladder
- screen/conveyor connection chutes
- hydraulically operated hopper support legs
- emergency stops strategically located around the machine

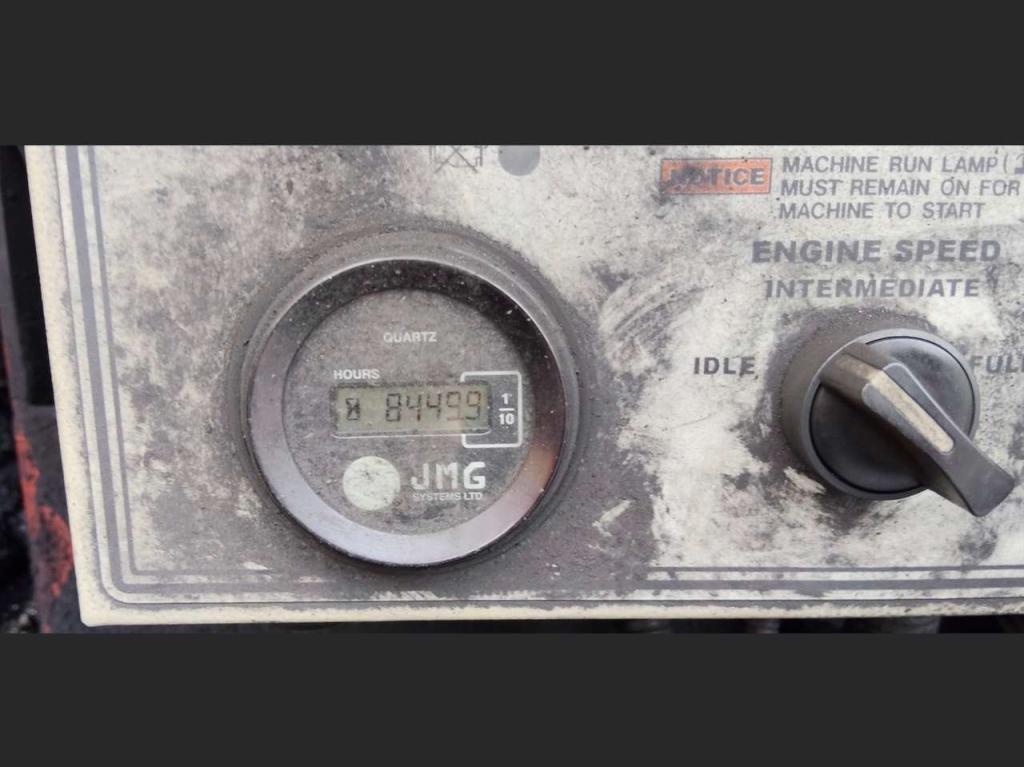

- control unit enclosure

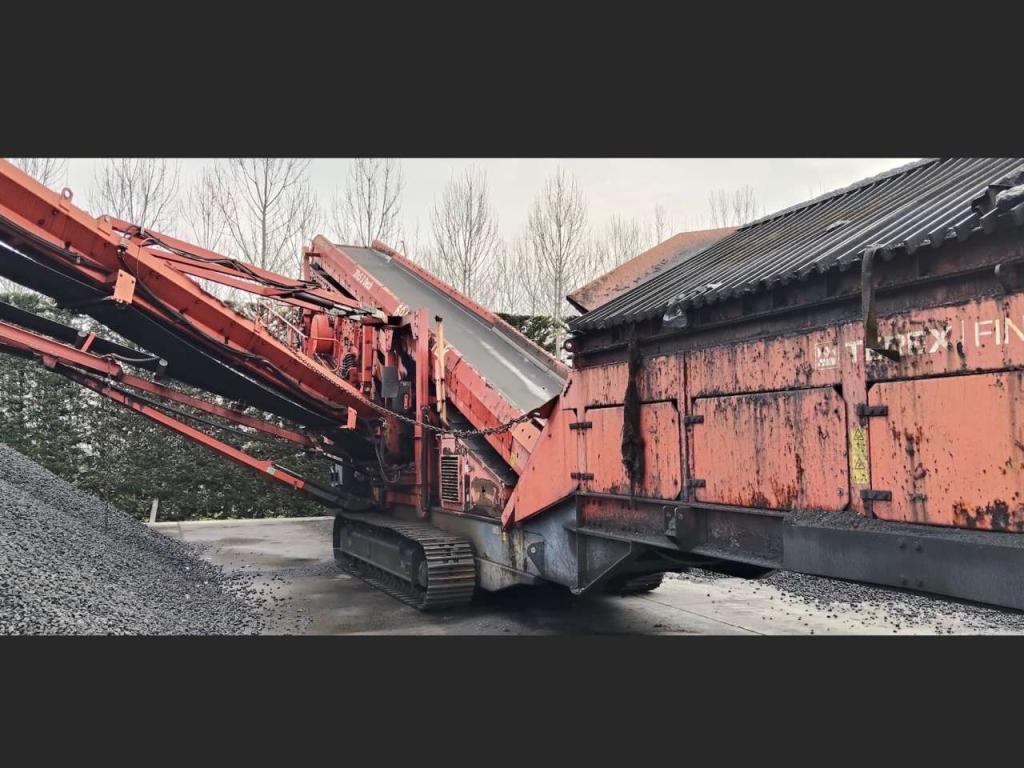

- Heavy Duty tracked undercarriage, with movement control via
remote control (wired and wireless)
- Lubrication points concentrated on the work surface
- Available in Verona, Italy
