CM F175

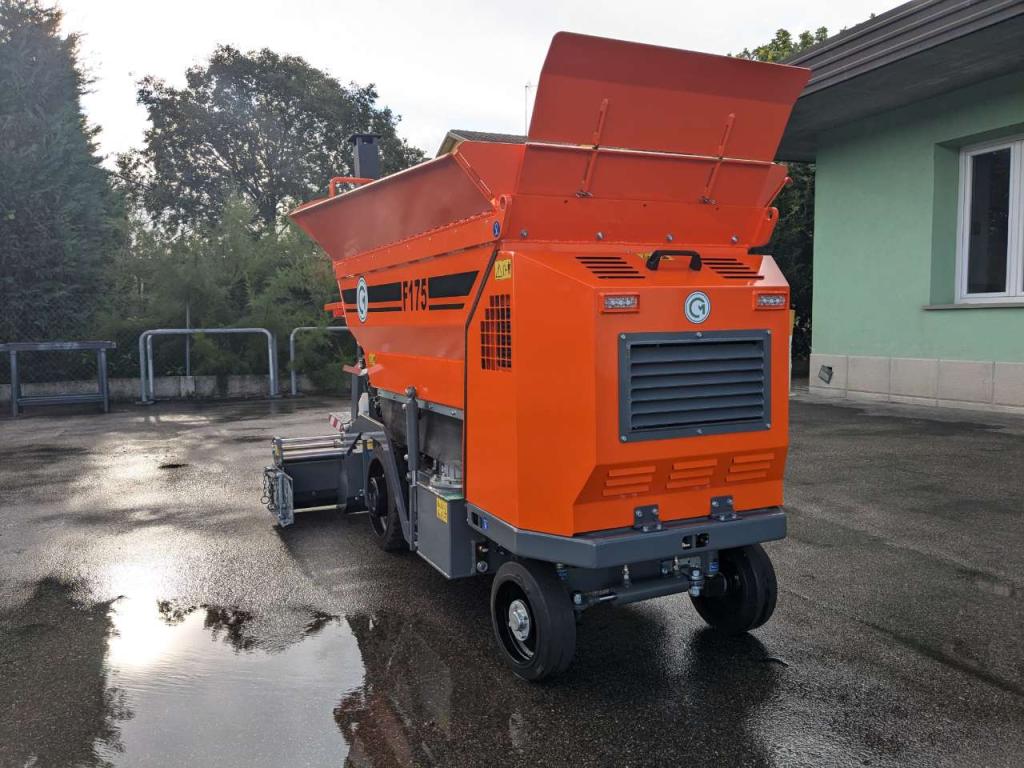

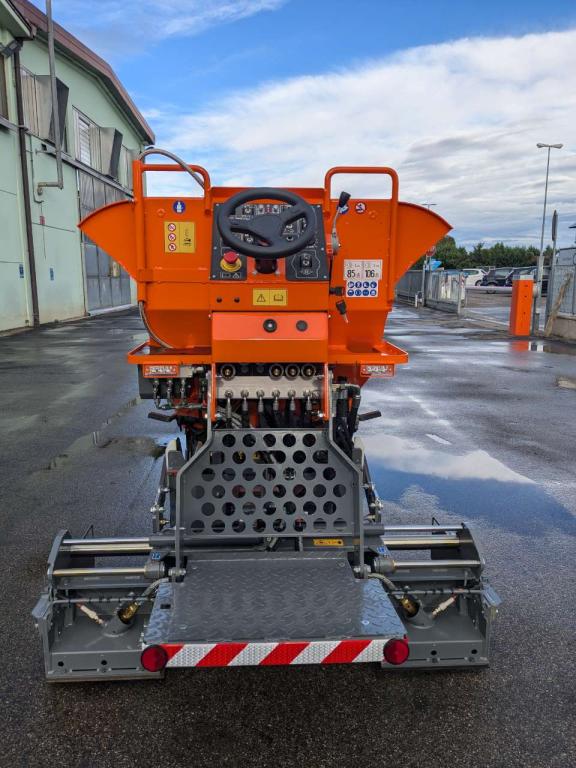

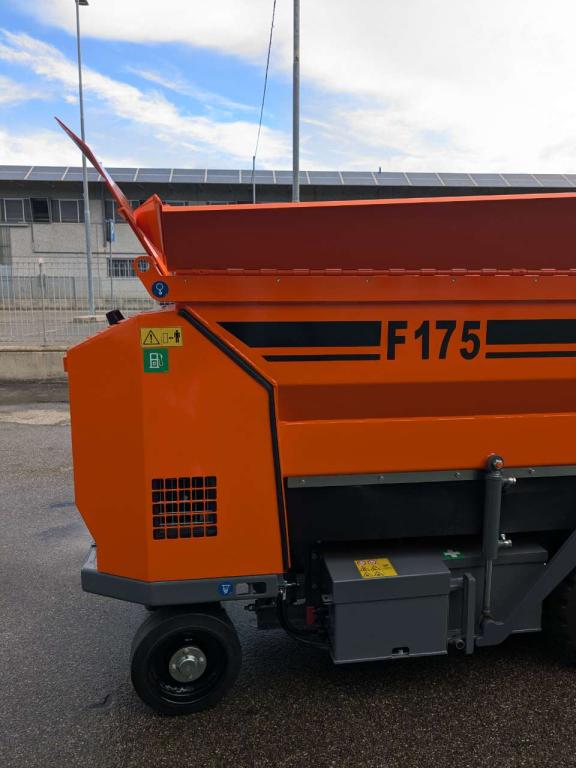

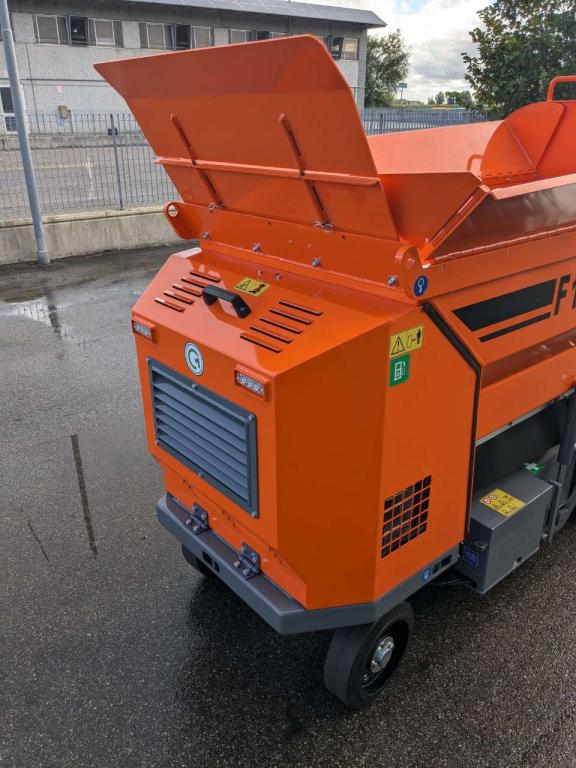

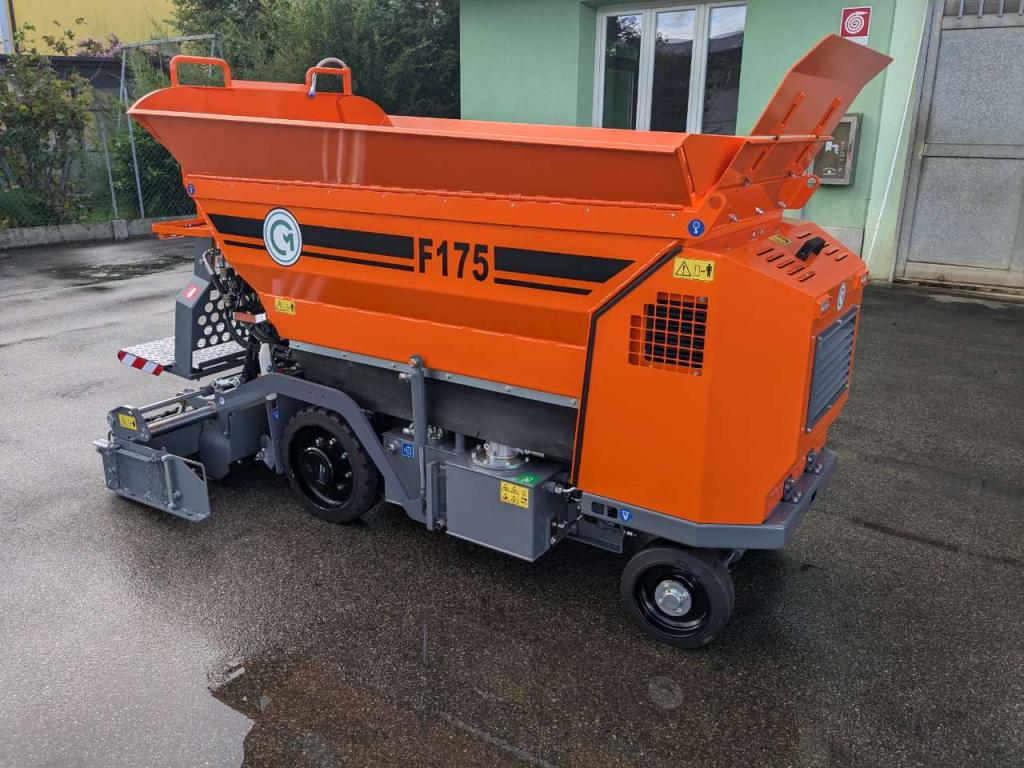

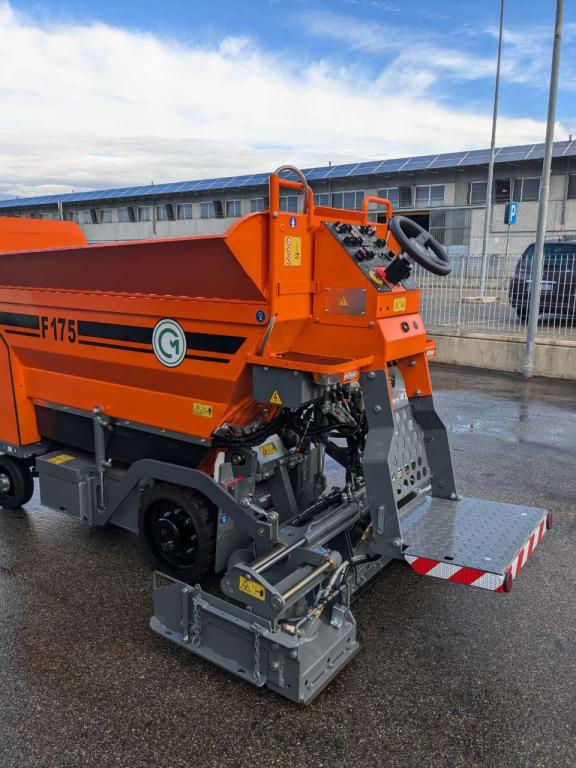

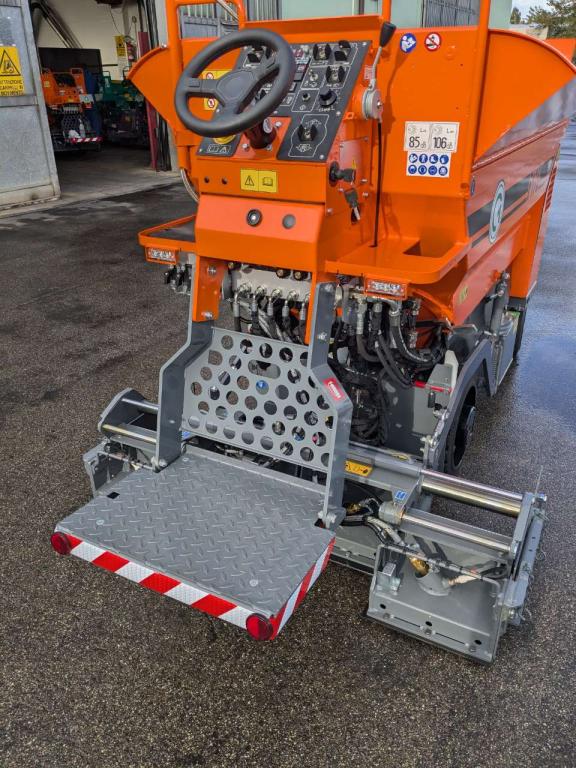

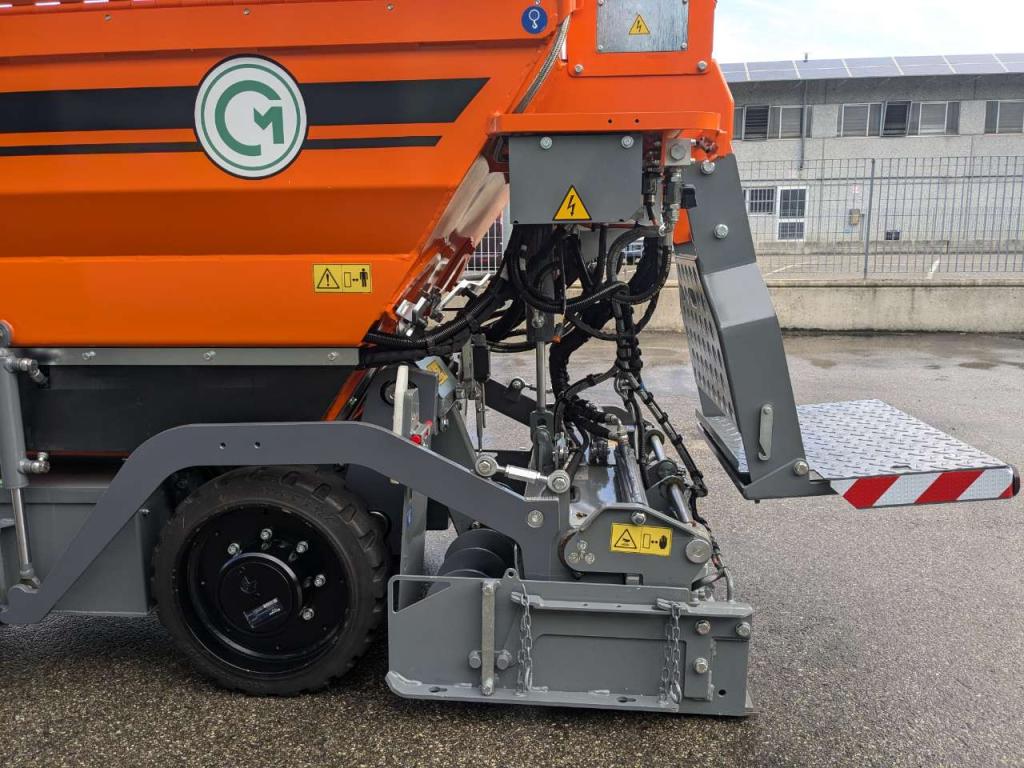

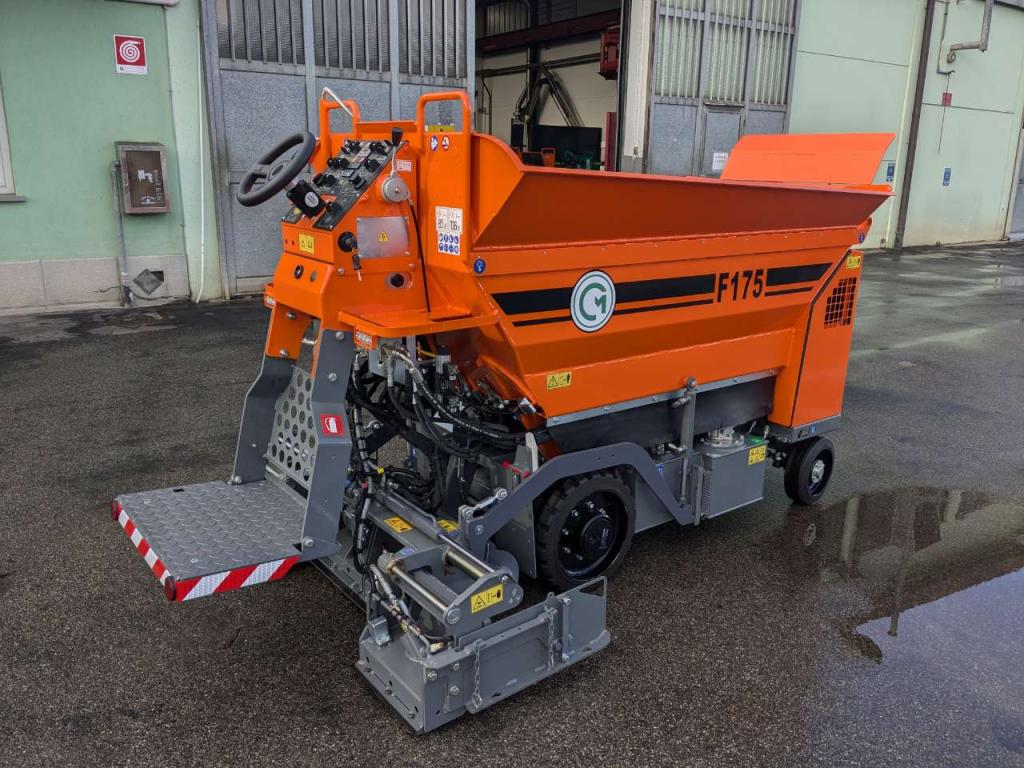

CM mini asphalt paver model F175, new, currently being assembled. Ready at the beginning of October 2024.
Year of construction: 2024. Hours of operation: 0 (for final testing only).
IDEAL FOR: sidewalks, cycle paths, closing of trenches.

• Engine Hatz 1B50T-6. Power: 7,6 kW at 3000 rpm

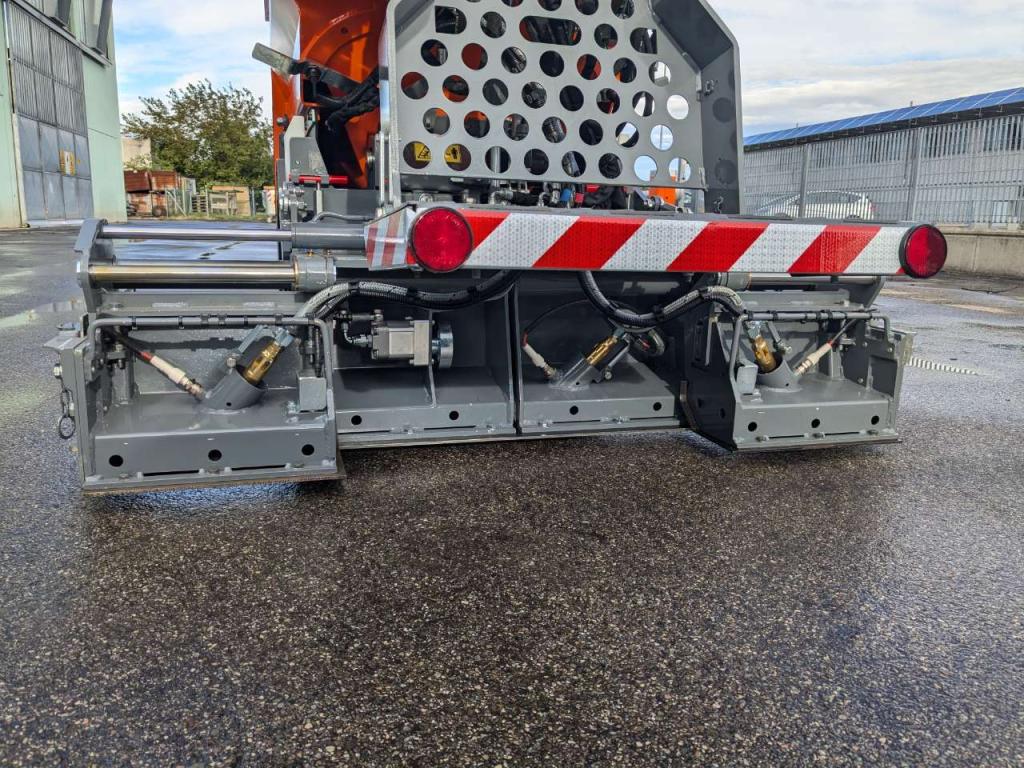

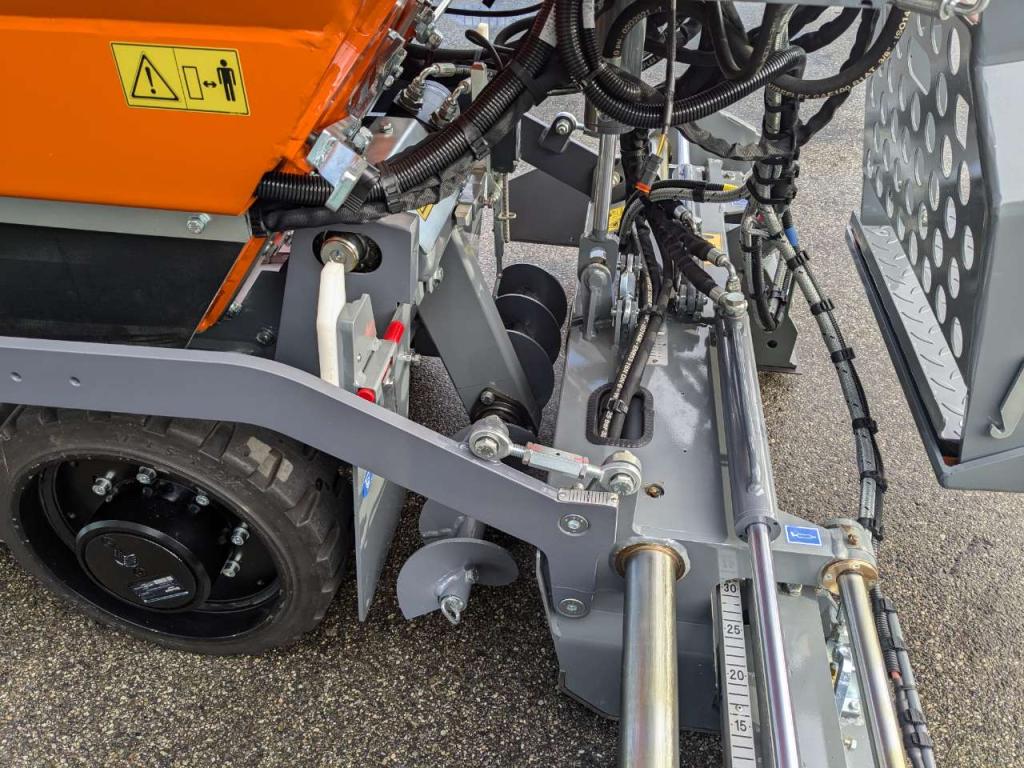

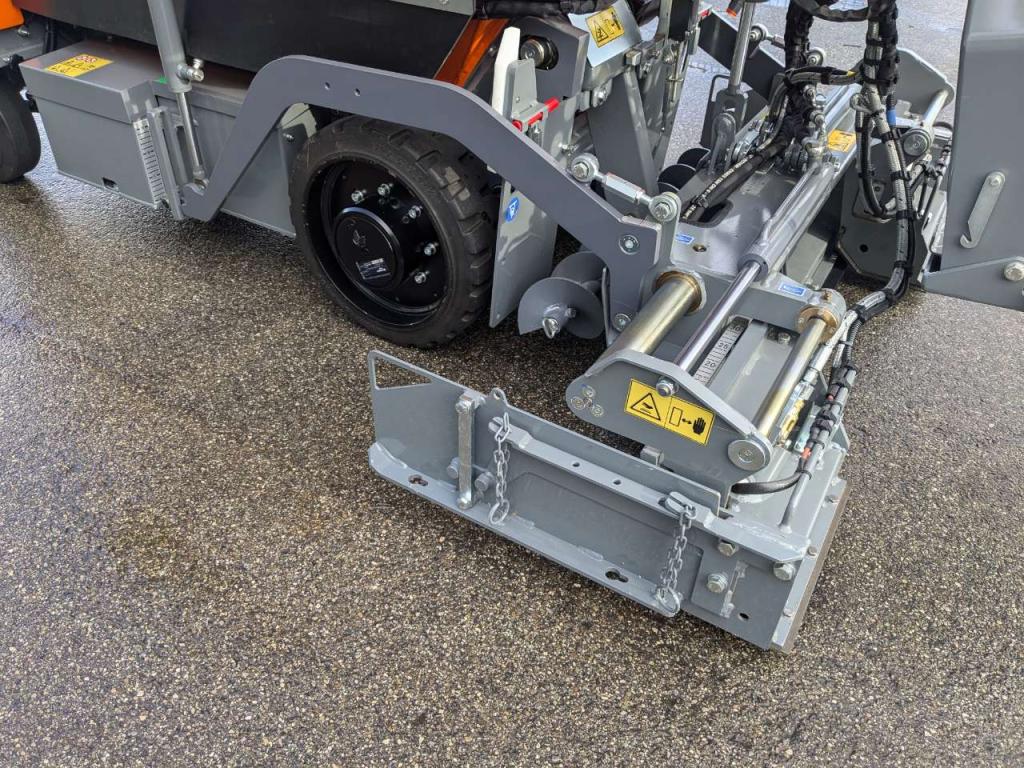

• Standard hydraulic screed width: 80 - 135 cm
• With mechanical extensions (option): max. 180 cm
• With reduction plates (option): min. 25 cm

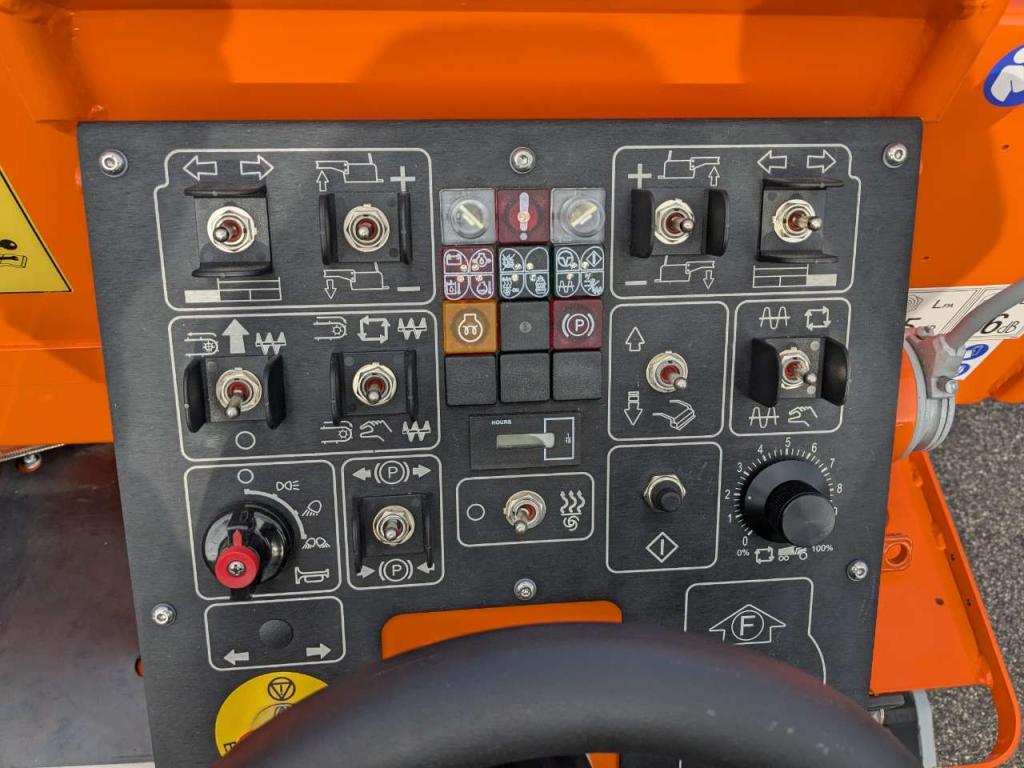

• Hydraulic switch for adjustment of paving thickness
• Mechanical gates for conveyor partializing

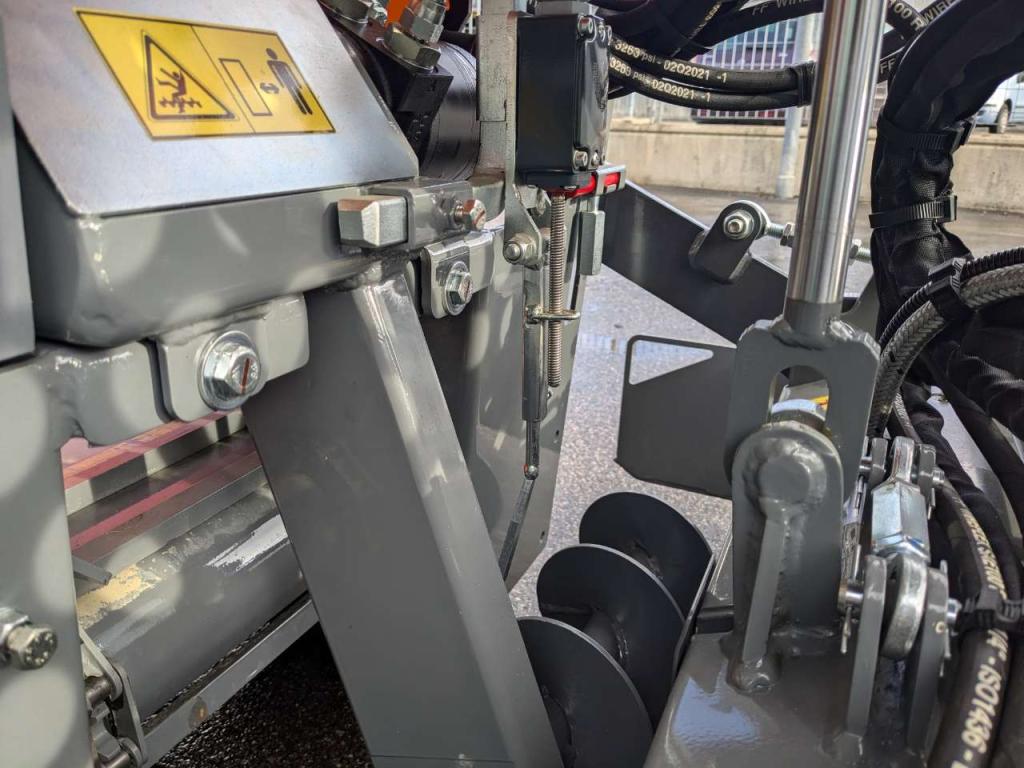

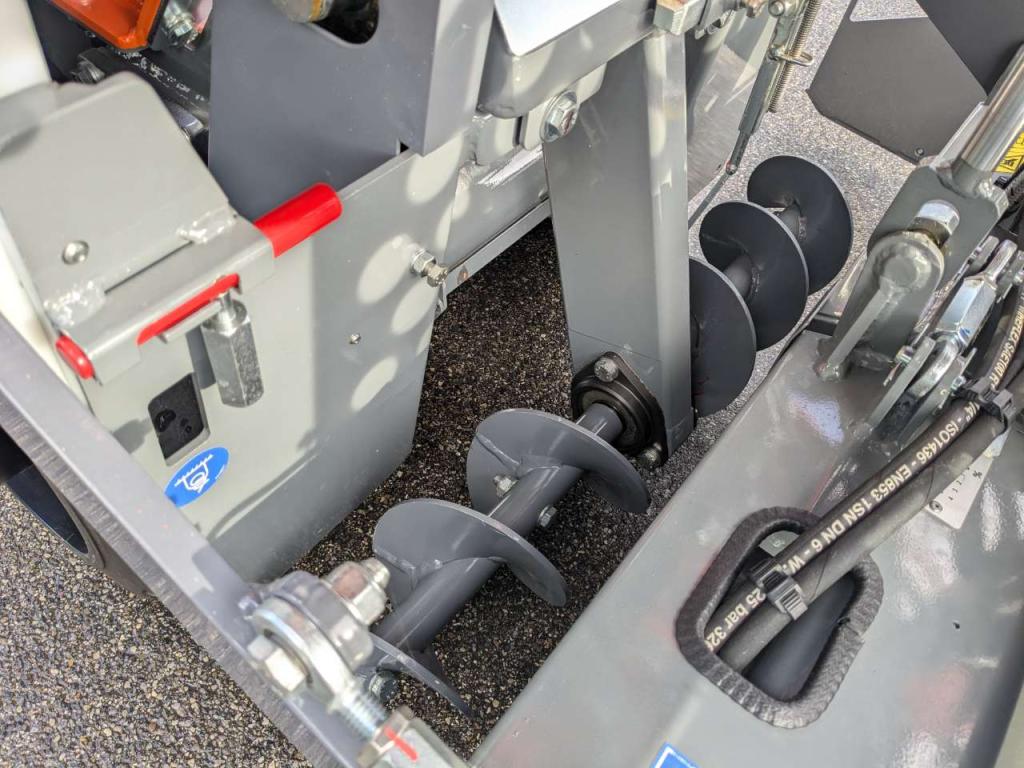

• Single-control auger-conveyor system. The direction of feeding can be reversed. Option: independent augers – conveyor system (2 feed sensors), to ensure a better material distribution.

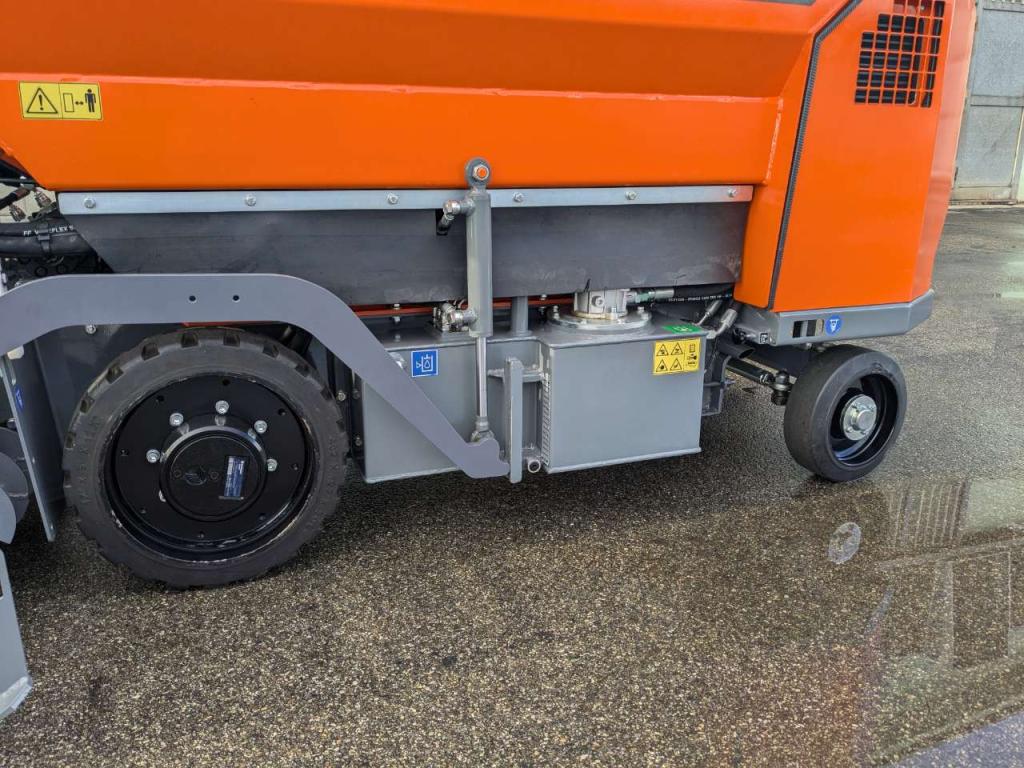

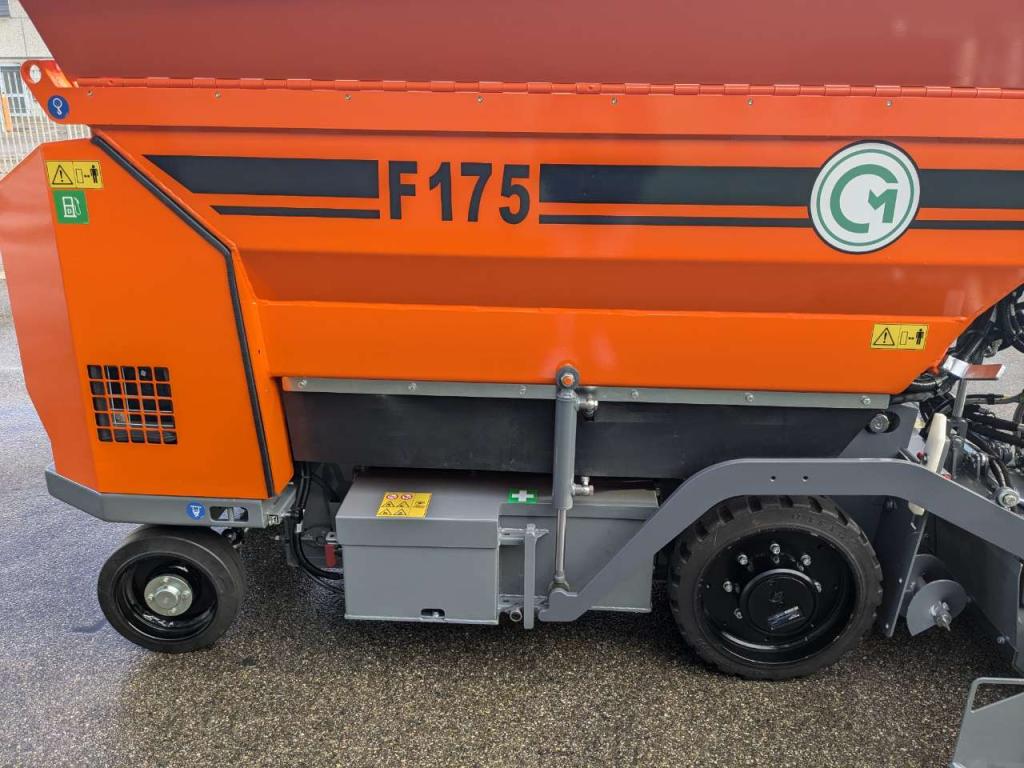

• Four wheels with rear drive
• GPS system (option)

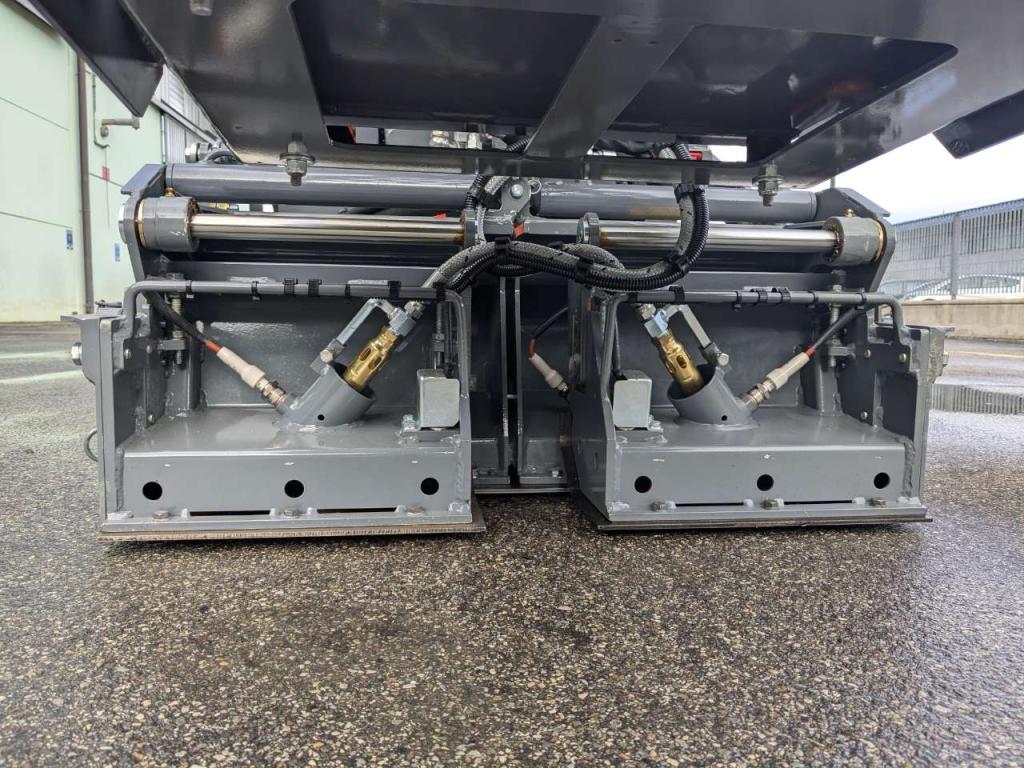

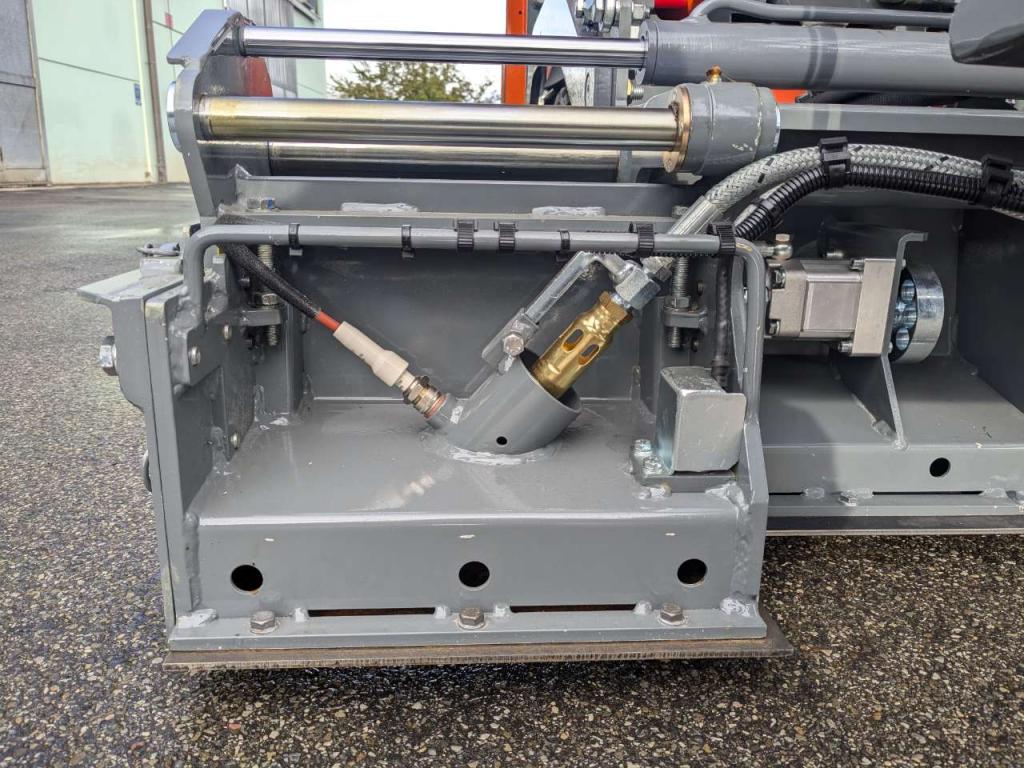

• Gas-heated screed with hydraulic vibration system and automatic flame – temperature control.
• Provided standard kit: rotating lamp with mast, direction index with pendulum, auger shaft protection, fire extinguisher support, belt for gas bottle fastening, pressure reducer, manual cleaning pump, tools bag, operation and maintenance manuals, spare parts catalogues, CE declaration.
• Weight: about 1100 kg. Dimensions for transportation: 260 x 86 x 150 (h) cm
The machine is provided with the necessary equipment to be immediately put into service (gas bottle excluded).
