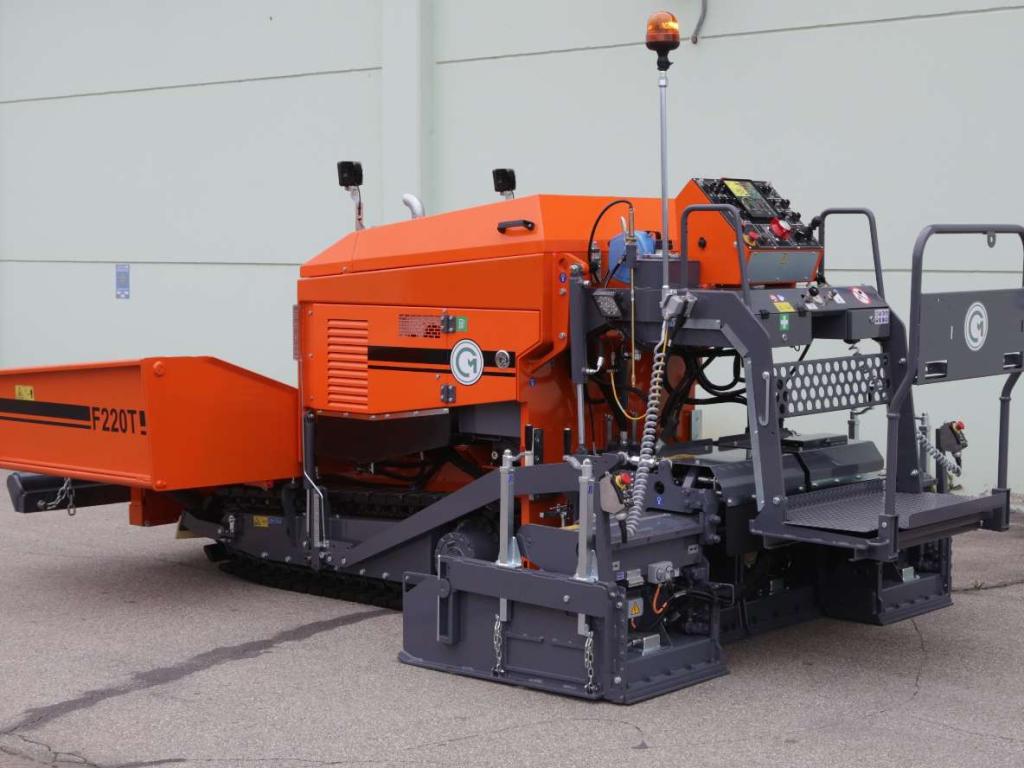

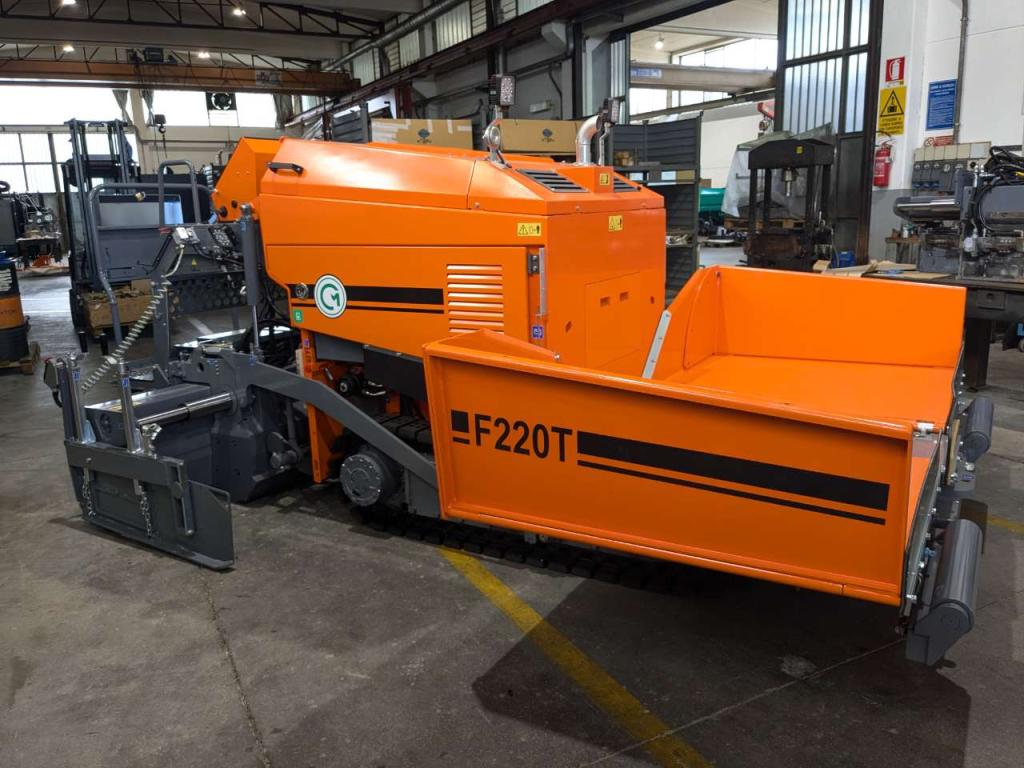

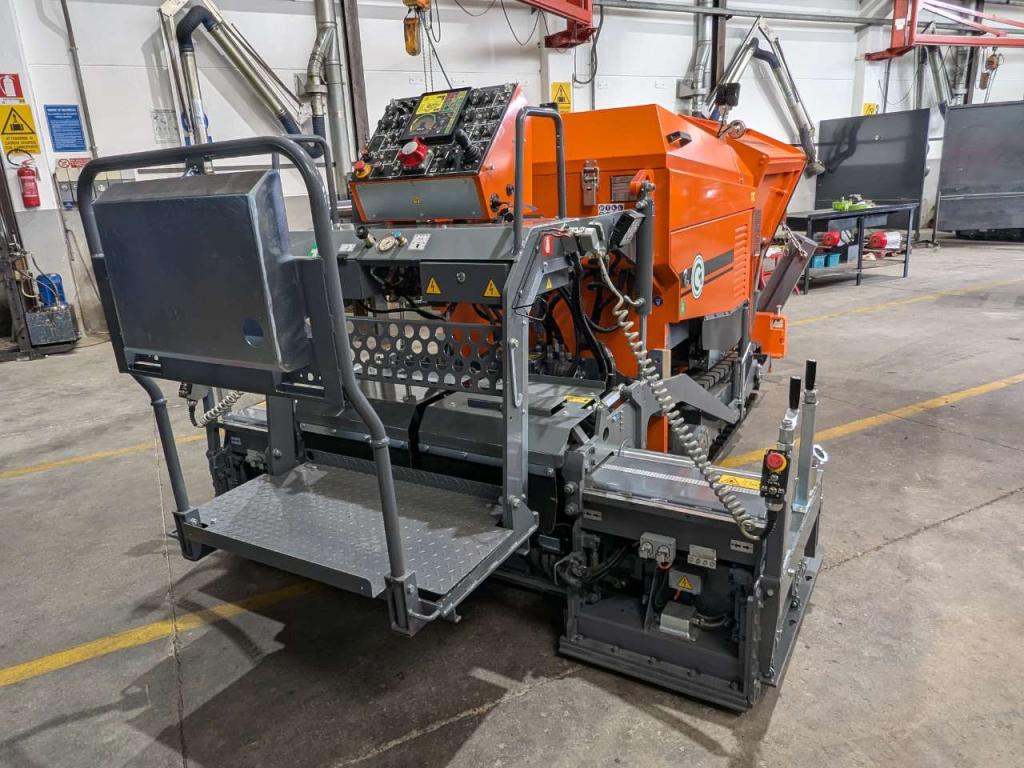

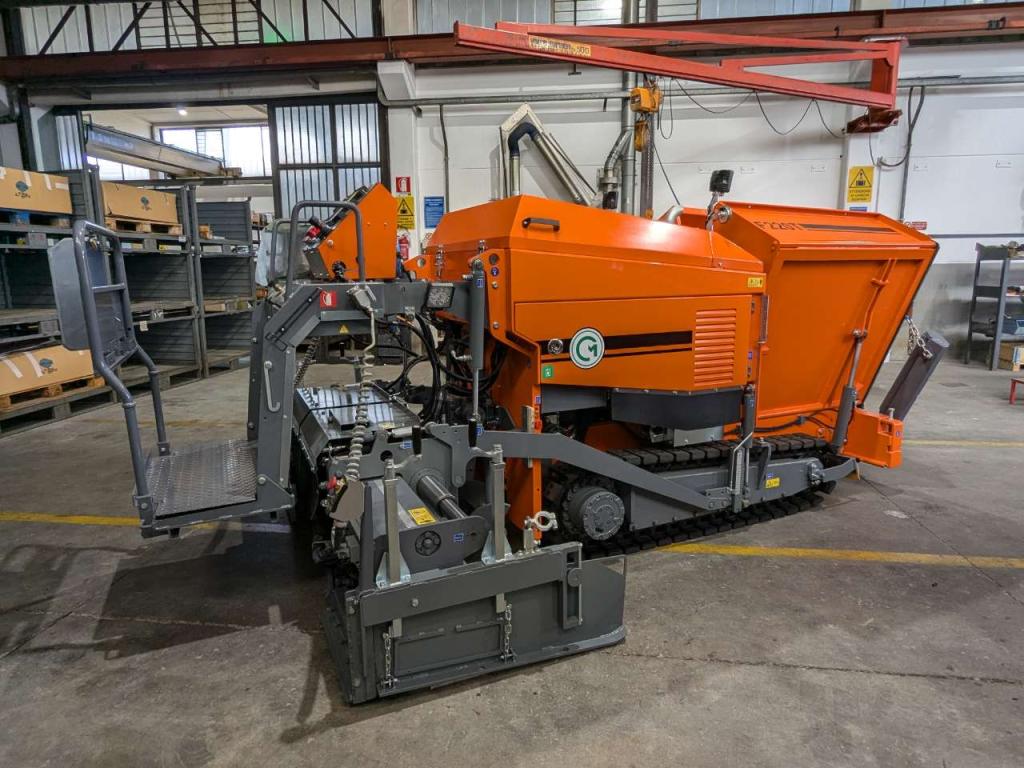

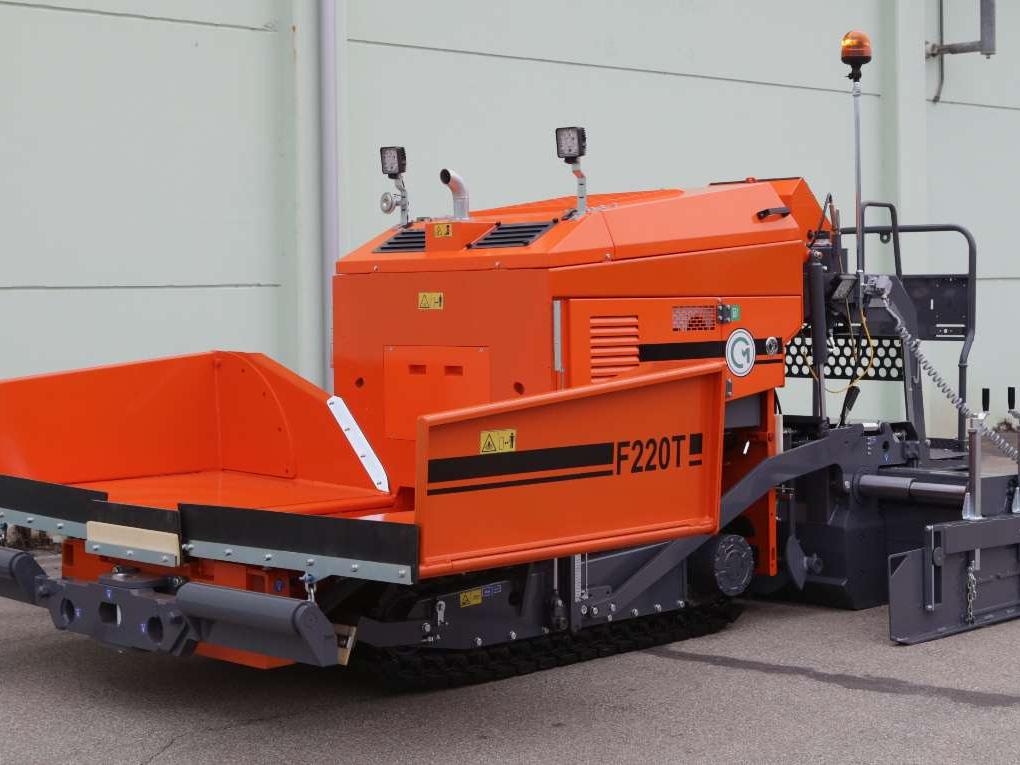

CM F220T

CM tracked paver model F220T, new units in production, ready from APRIL 2026.
Year of construction: 2026. Hours of operation: 0 (for final testing only)

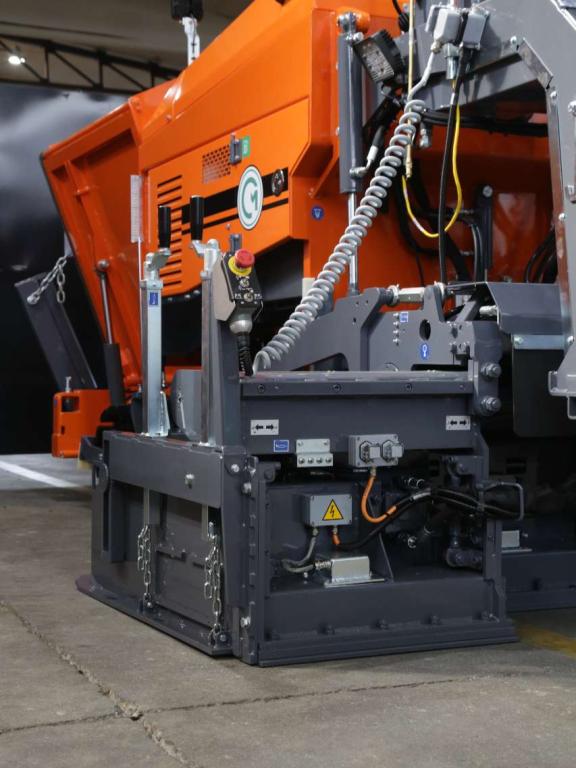

Screed: with electric heating. With tamper and vibrating system, or with vibrating system only
Paving width: 120 - 220 cm standard ; 50 - 300 cm (min. and max., by using options)

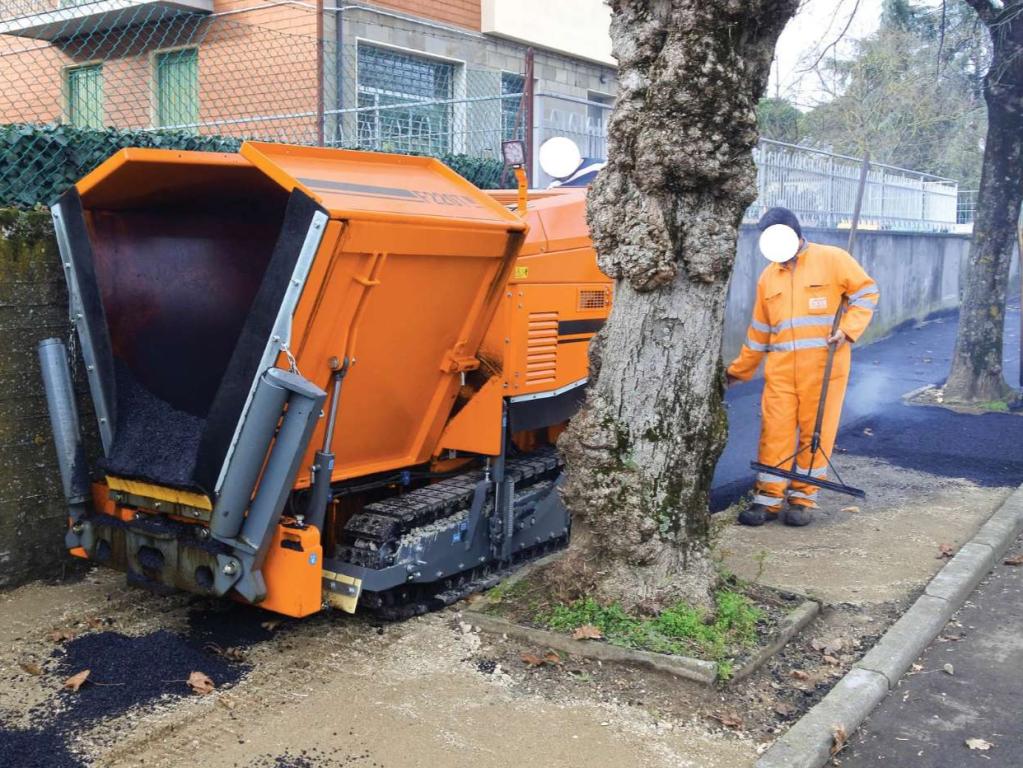

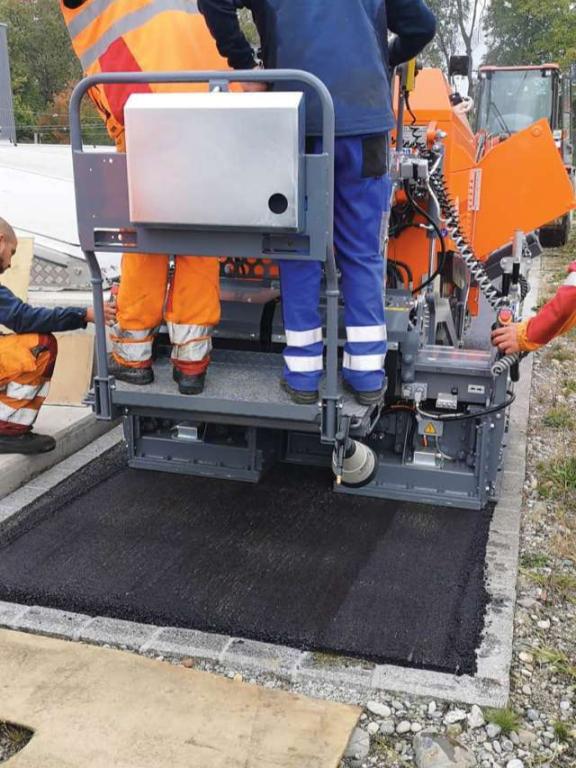

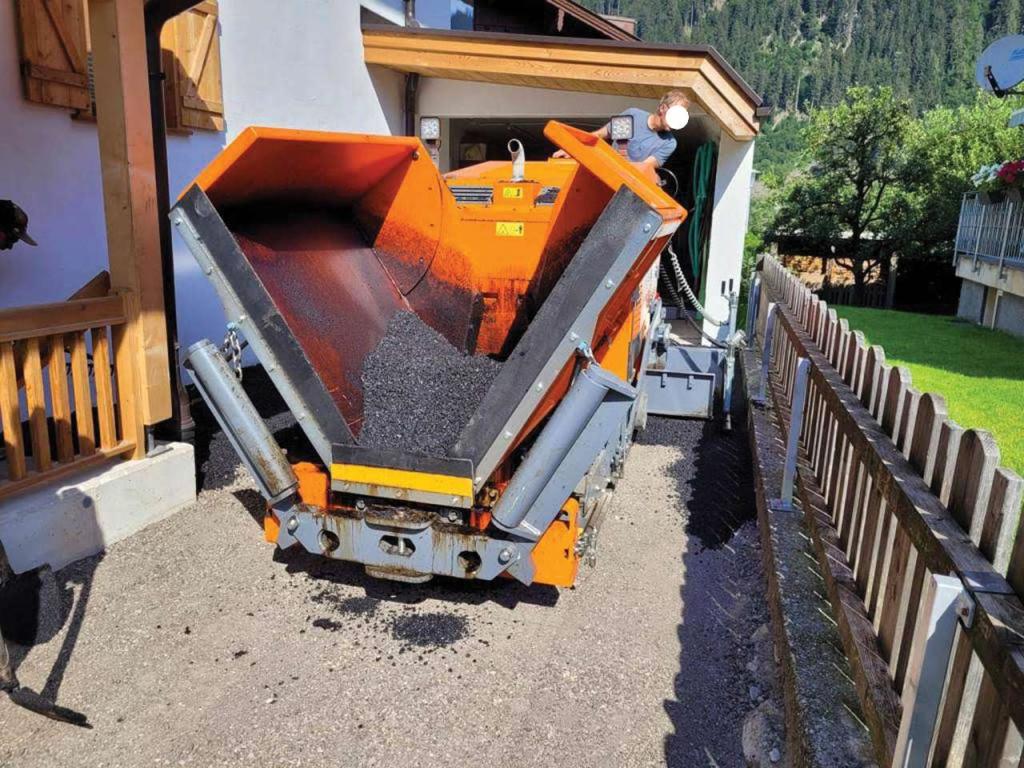

Ideal for sidewalks, cycle paths, squares, parking lots, emergency lanes, urban roads.

Technical features:
• Engine Perkins 404J-E22T-EU Stage V (US EPA 40 CFR Part 1039 Tier 4 Final)
• Power 45 kW (60 hp) at 2800 rpm
• Diesel tank 70 l

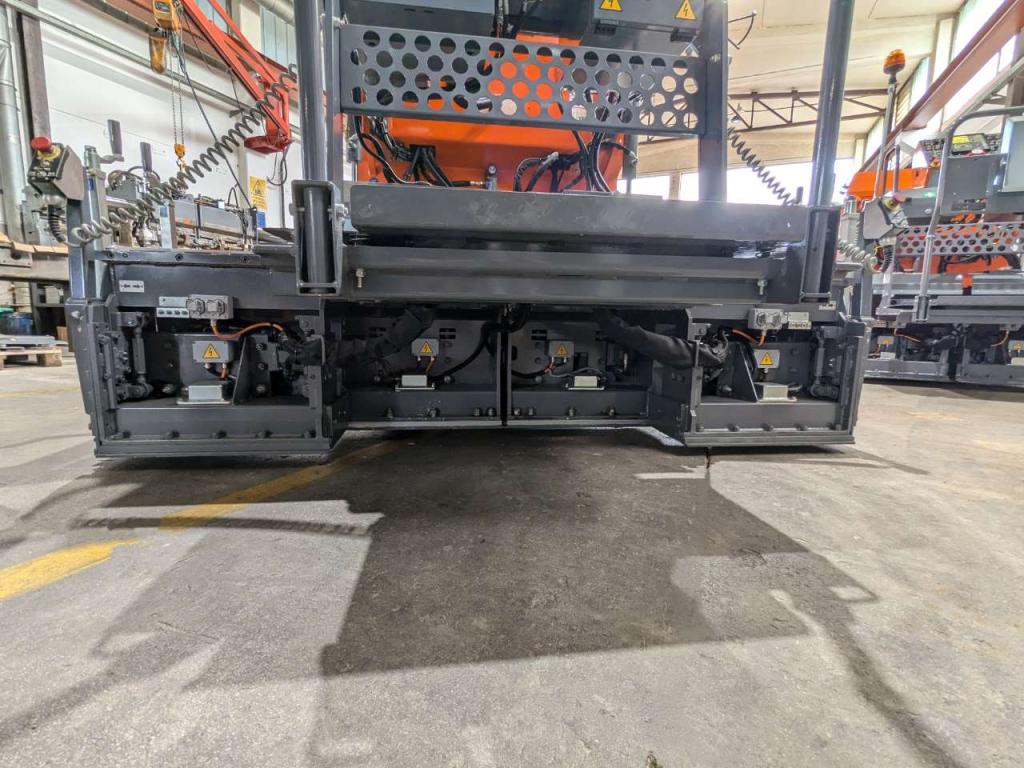

• Screed with 3-phase 380/400V electric heating system
• Standard paving width: 120 - 220 cm; max. 300 cm with mechanical extensions (on request); min. 50 cm with reduction plates (on request)

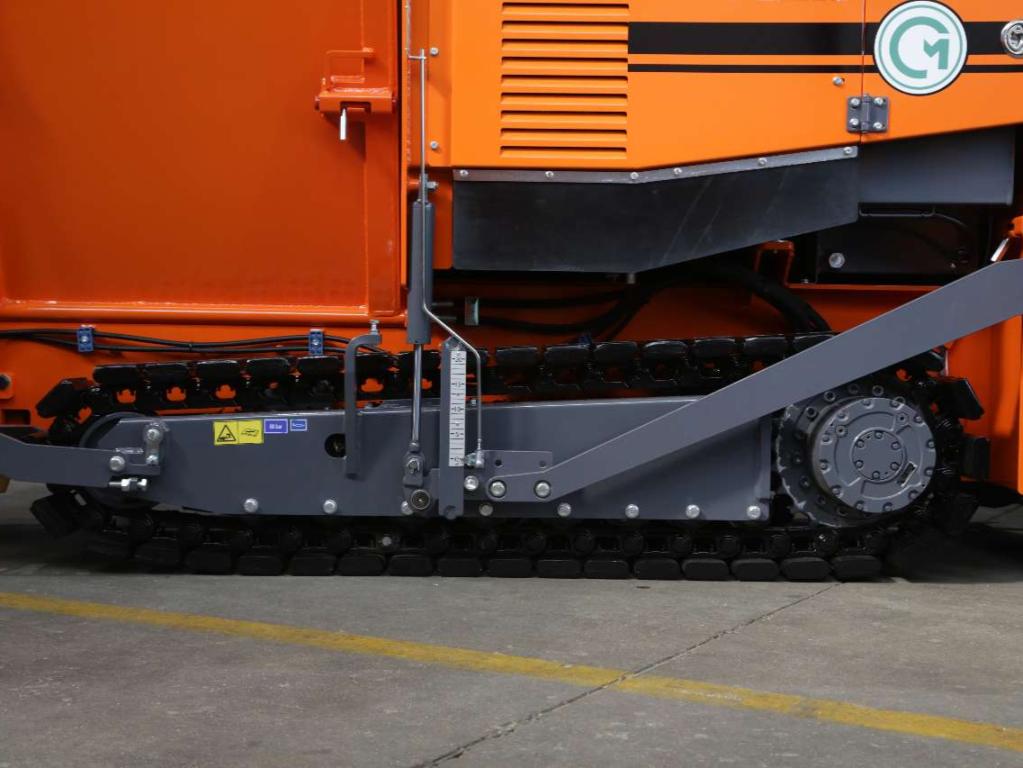

• Tracks with steel chain and rubber-bonded, wear-resistant pads

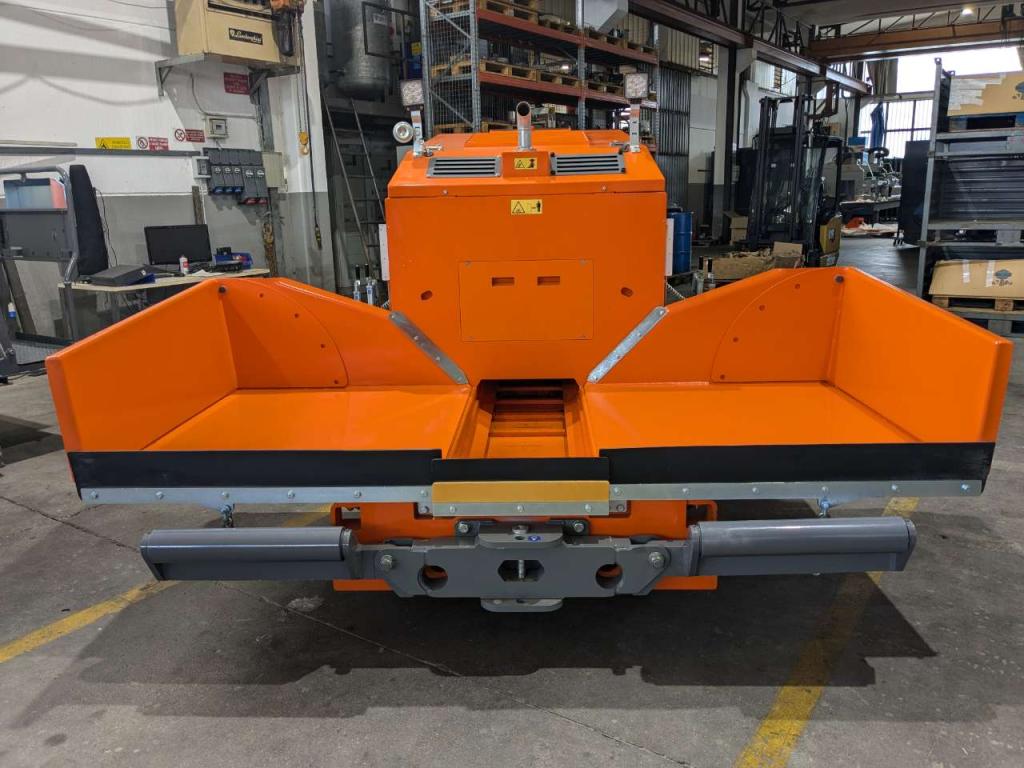

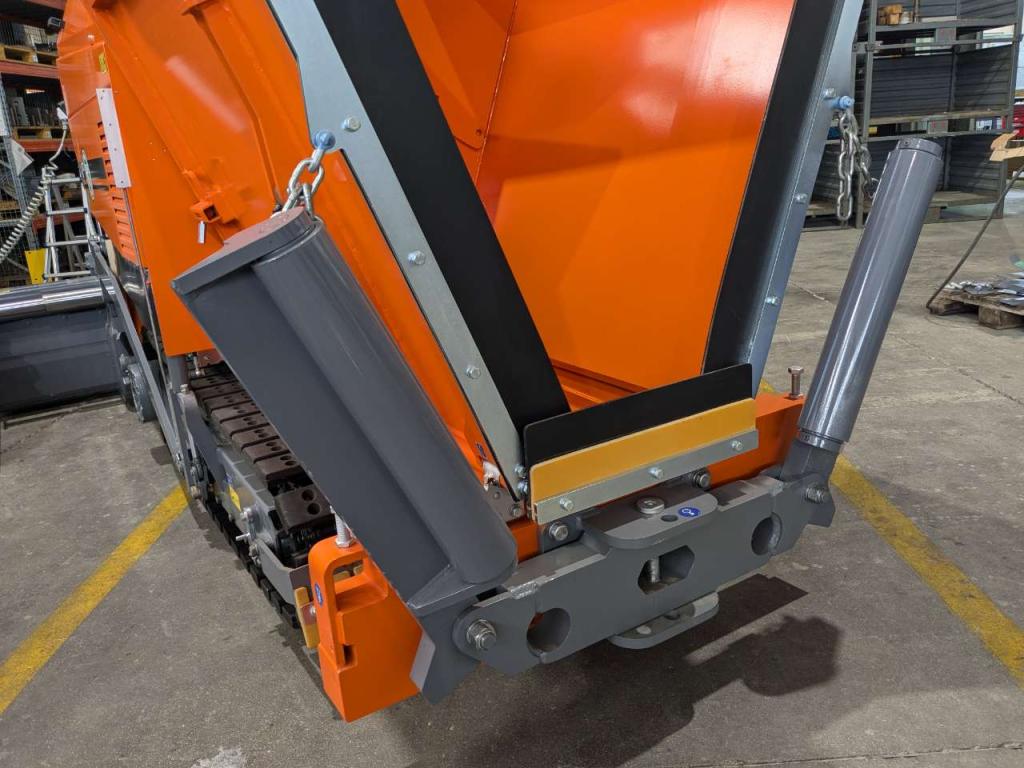

• Two independent-control hoppers with vertical swing-out wings; max. internal width 265 cm; capacity 3800 kg.
• Front or lateral loading (with truck or skid steer loader)
• Two independent augers with hydraulic lifting and mechanical feed sensors; or ultrasonic feed sensors (option)
• Adjusting units on the screed to vary the paving profile (V or crowned; M – W)

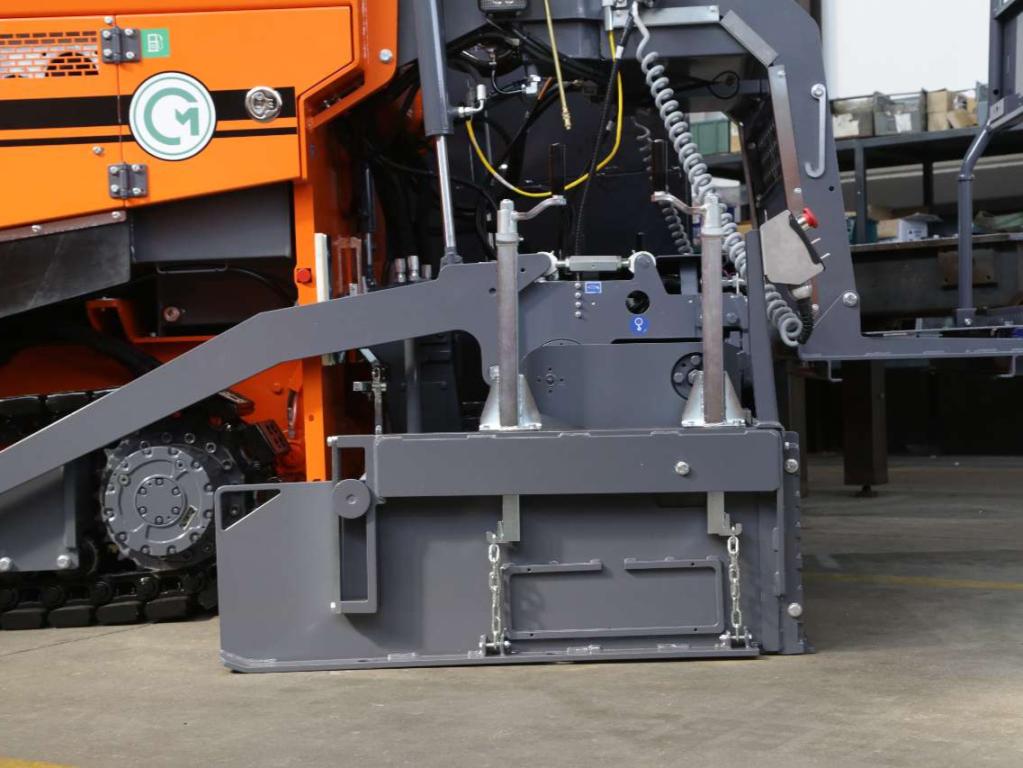

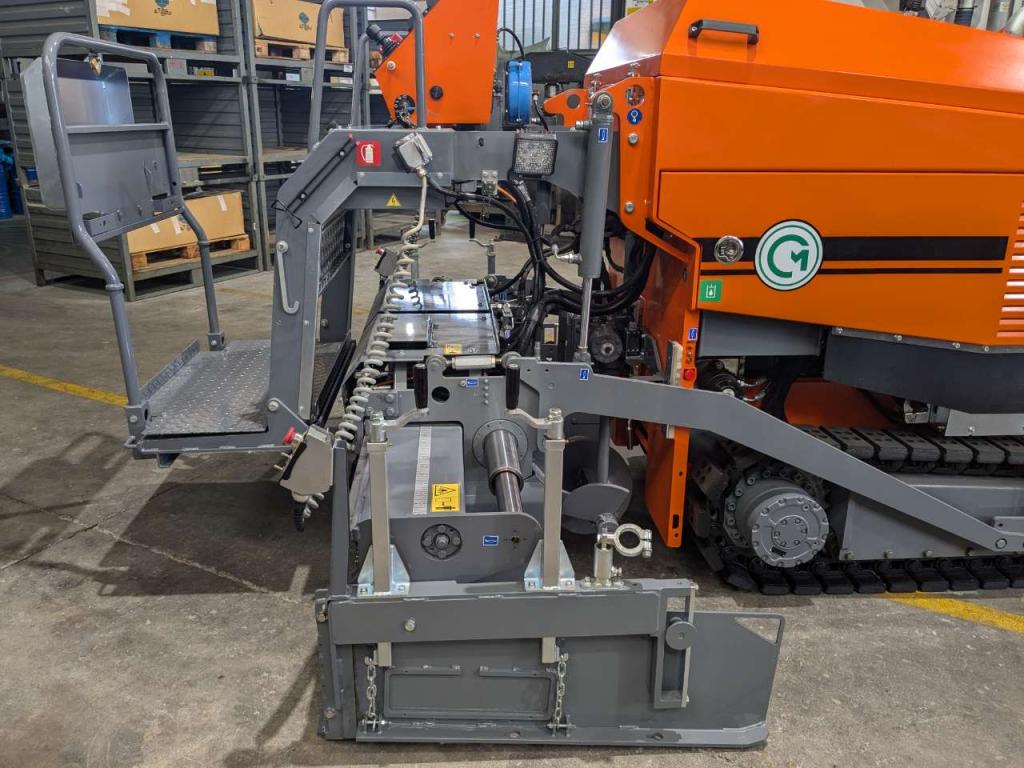

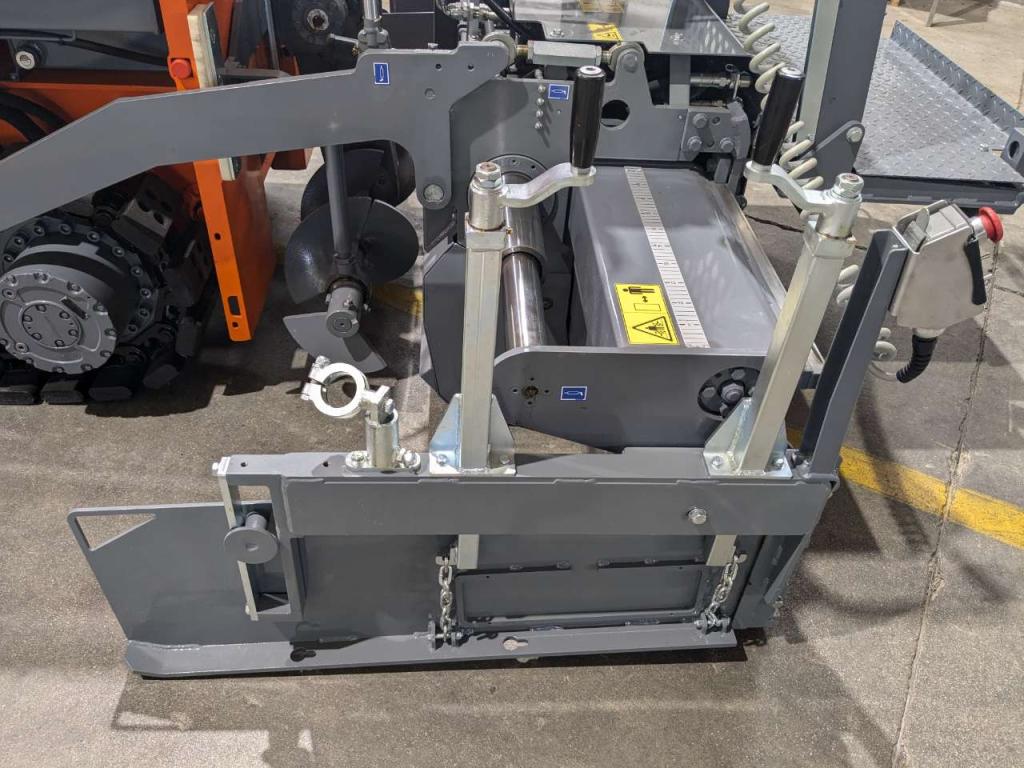

• Adjusting side end gates with two adjusting units
• Provided standard kit: rotating lamp with mast, pendulum of the direction index, 6 l manual cleaning pump, tools bag, operation and maintenance manuals, spare parts catalogues, CE declaration
• Weight: about 4800 kg. Dimensions for transportation: 425 x 120 x 182 (h) cm
• GPS system, as well as other options, on request.
