CM F180T

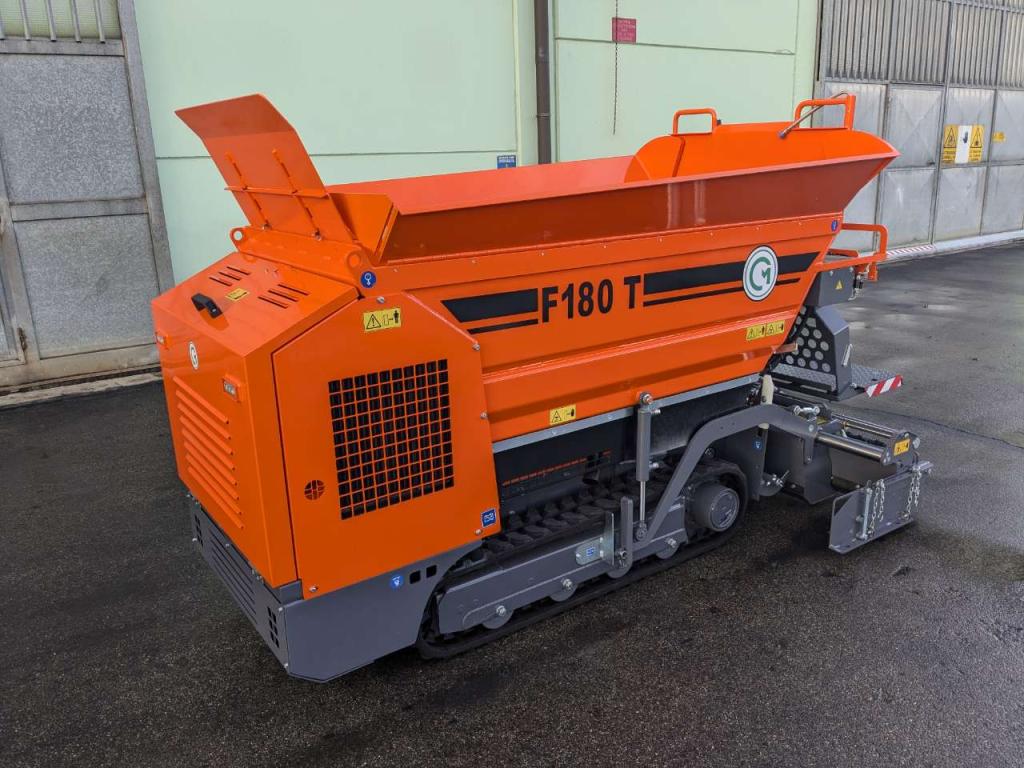

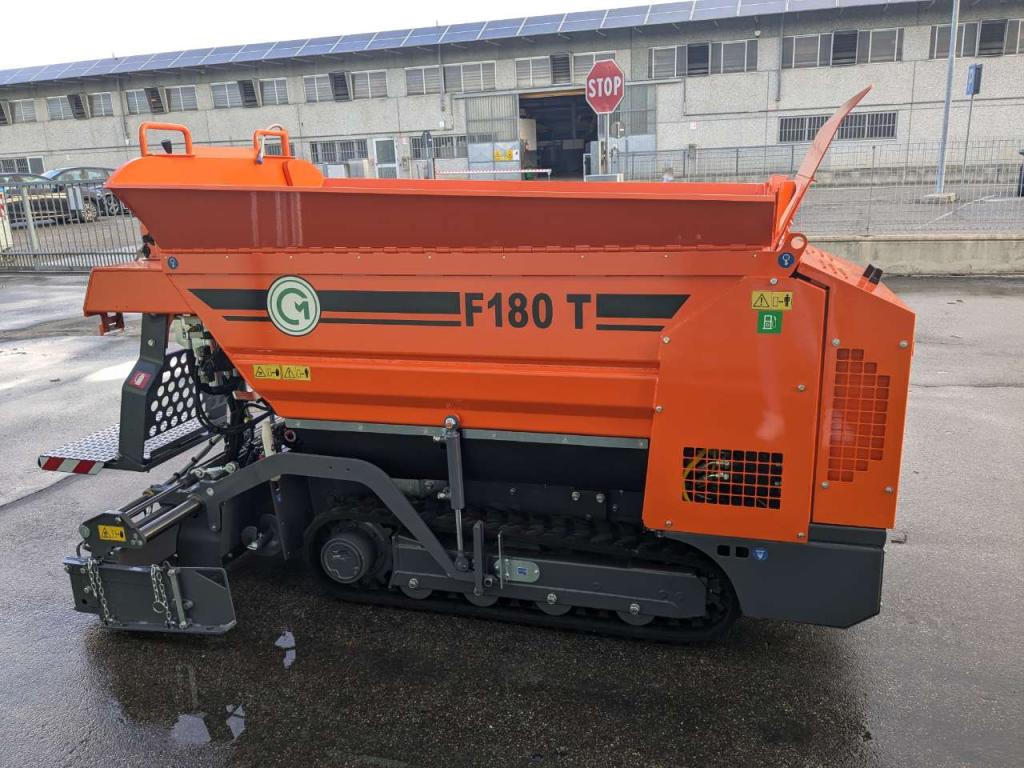

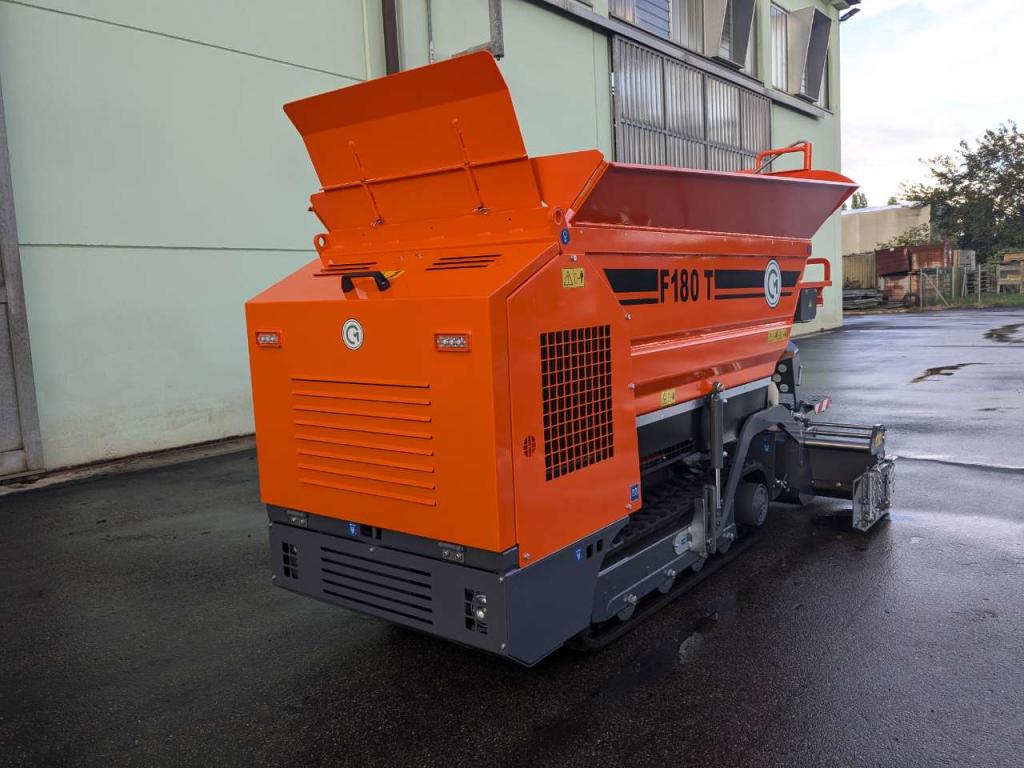

CM tracked mini-paver model F180T, new, currently being assembled. Ready at the beginning of October 2024.
Year of construction: 2024. Hours of operation: 0 (for final testing only).
Ideal for: closing of trenches, sidewalks, cycle paths, slopes or unstable grounds, thanks to its grip and wide ground contact area

Technical features:
• Engine Yanmar 2TNV70-ASA. Power: 10,5 kW at 3600 rpm
• Diesel tank capacity: 16 l
• Standard hydraulic screed width: 80 - 135 cm
• With mechanical extensions (option): max. 180/202 cm
• With reduction plates (option): min. 25 cm
• Hydraulic switch for adjustment of paving thickness; paving thickness 0-10 cm

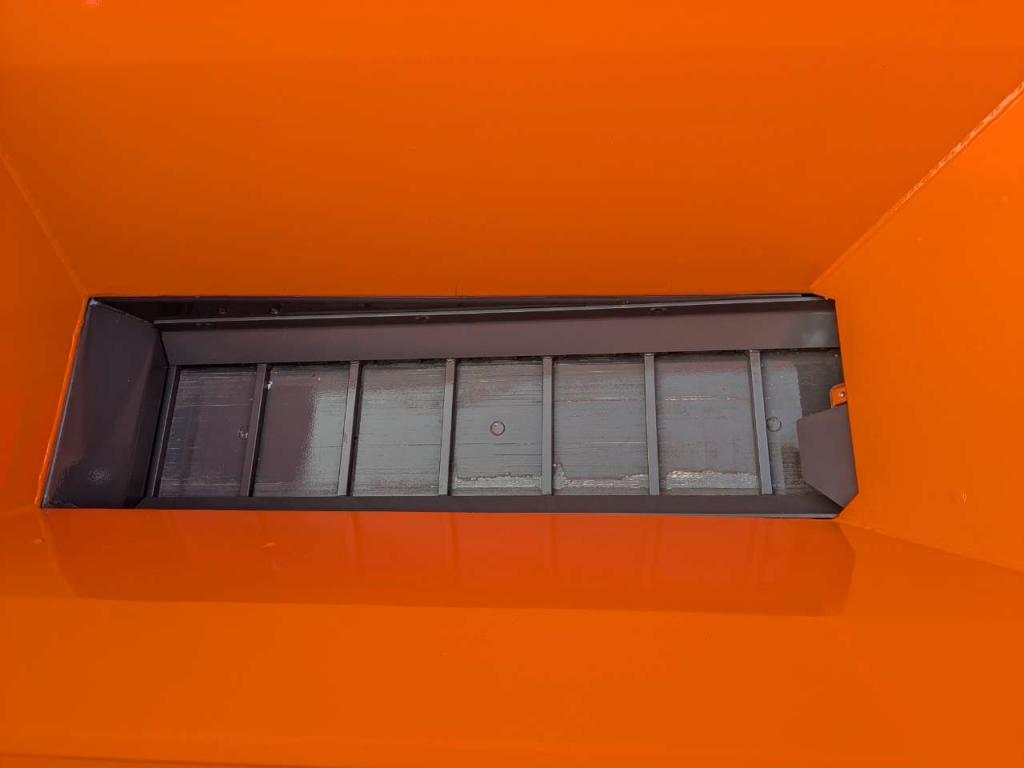

• Mechanical gates for conveyor partializing
• Independent augers – conveyor system (2 feed sensors), to ensure a better material distribution The direction of feeding can be reversed.

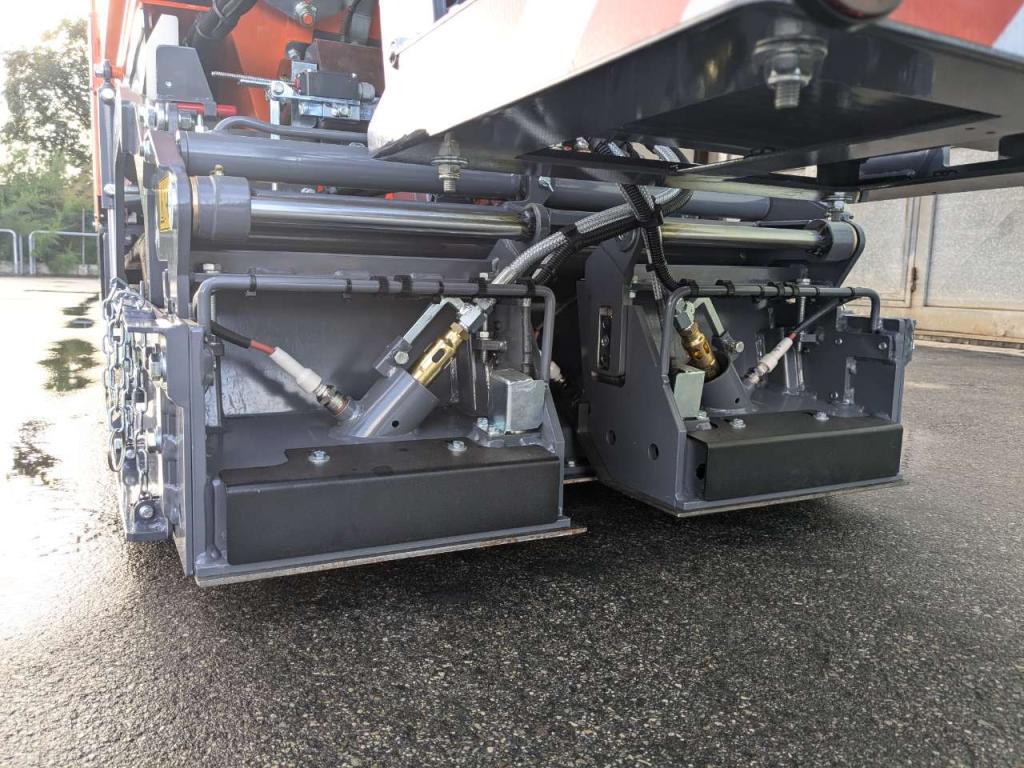

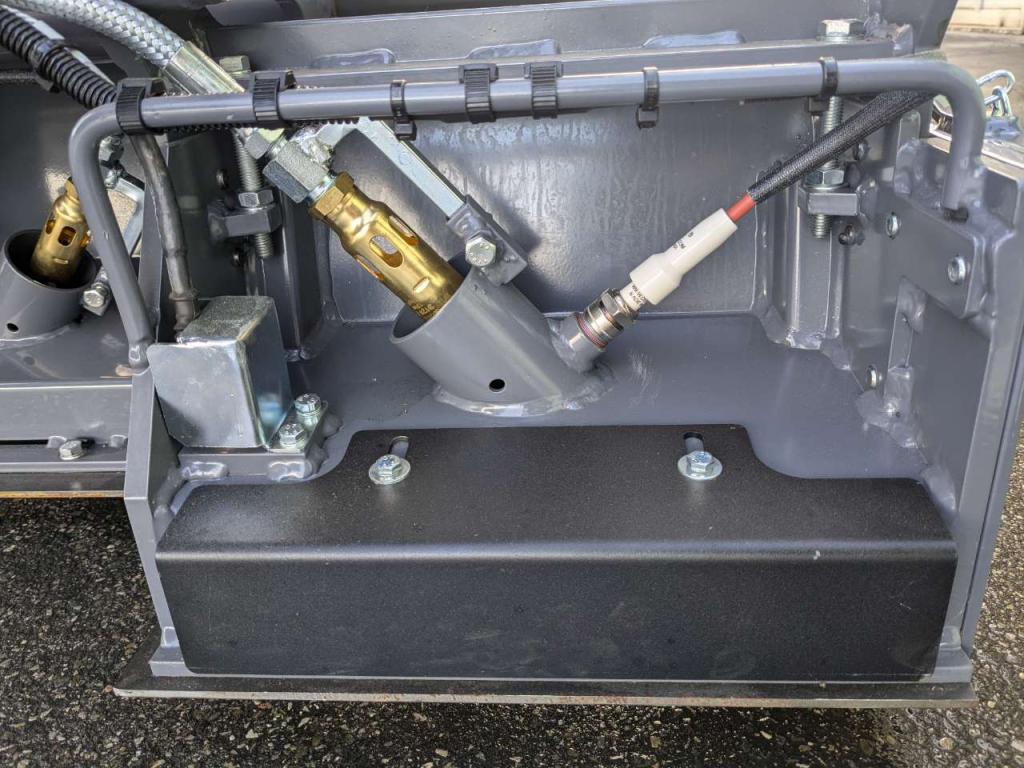

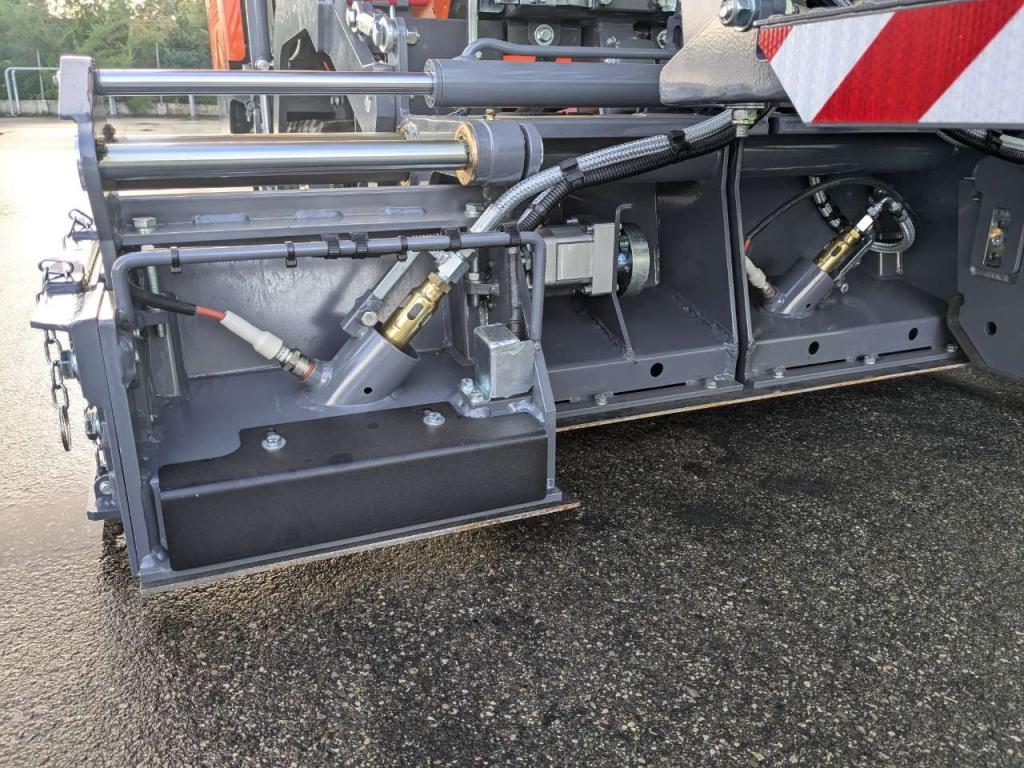

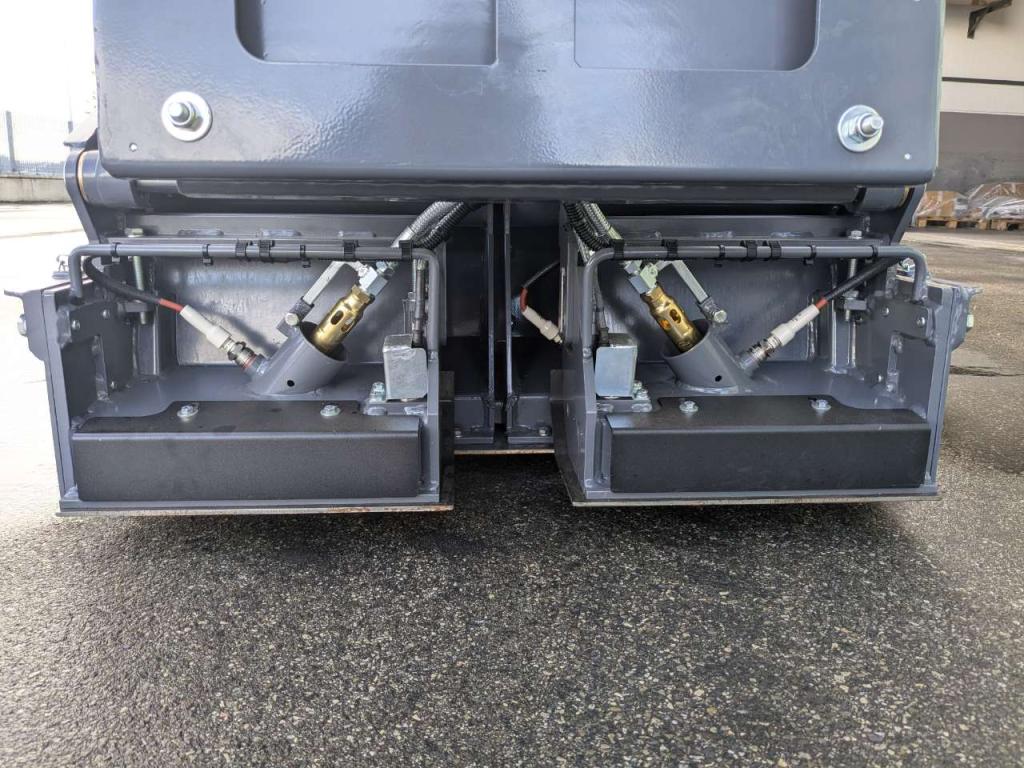

• Gas-heated screed with hydraulic vibration system and automatic flame – temperature control.
• Provided standard kit: rotating lamp with mast, direction index with pendulum, auger shaft protection (for reduction plate installation), fire extinguisher support, belt for gas bottle fastening, pressure reducer, manual cleaning pump, tools bag, operation and maintenance manuals, spare parts catalogues, CE declaration.
• Weight: about 1400 kg. Dimensions for transportation: 270 x 90 x 160 (h) cm
The machine is provided with the necessary equipment to be immediately put into service (gas bottle excluded).
