Gasparin OMG GI 4500R

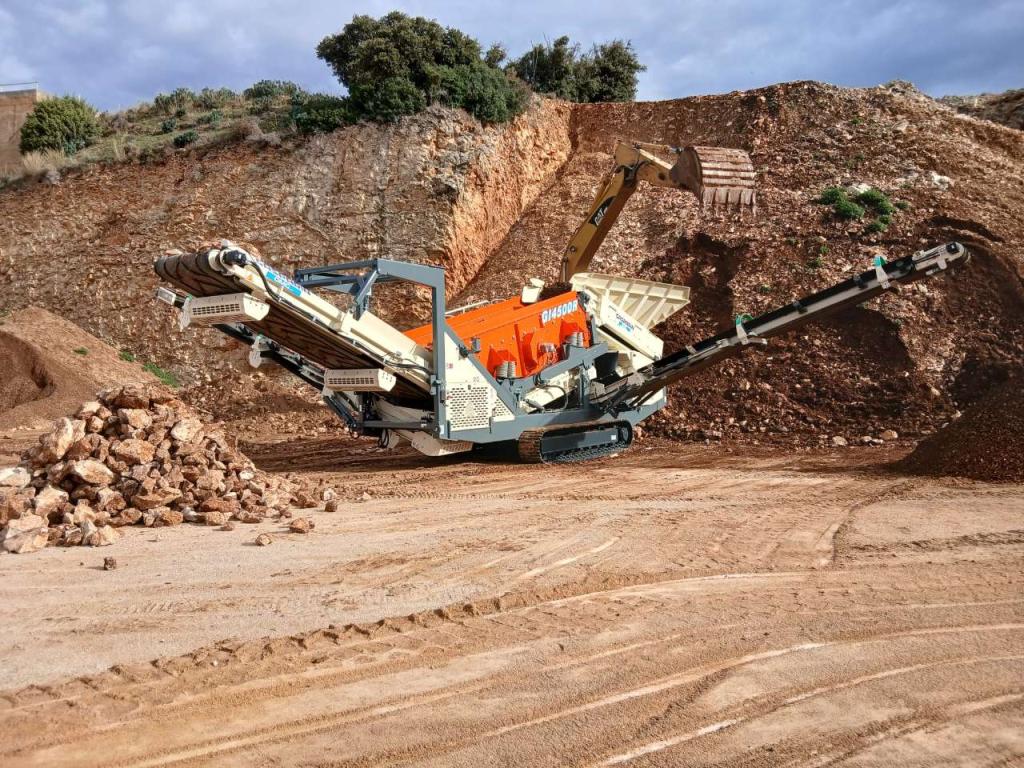

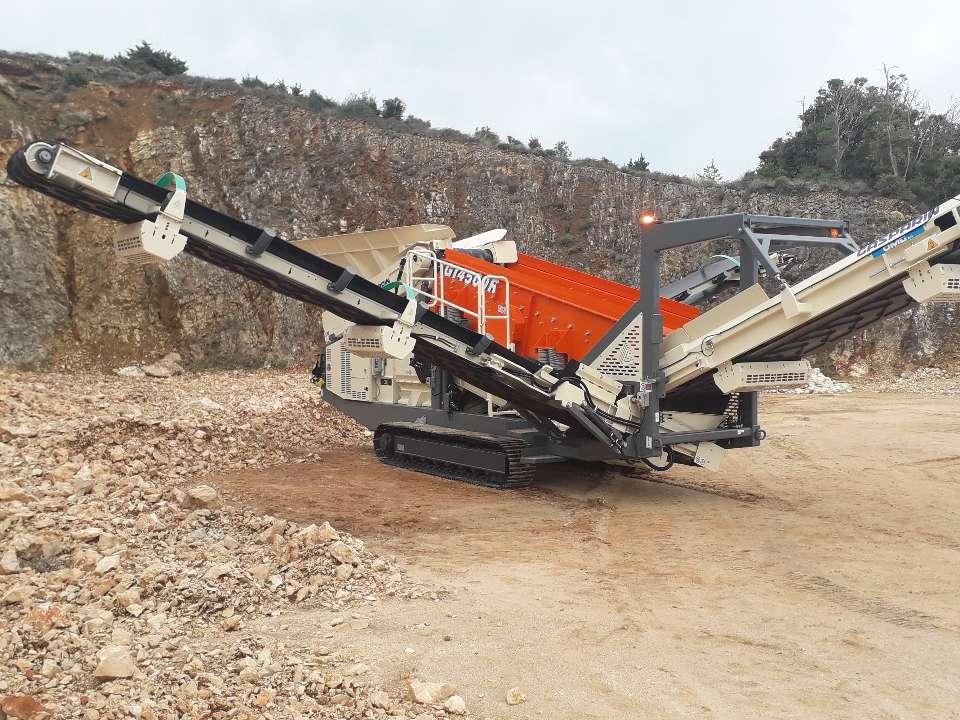

The Gasparin OMG GI4500R multifunction mobile screening plant is designed to operate independently as a primary screen or in combination with GI CRUSHER machines.

Positioned before the crusher, it can operate as a scalping screen, while downstream of the crusher it can perform final screening. The wide range of available screening decks, including wire mesh, perforated plate, grizzly bars and finger decks, makes it suitable for various material separation applications in both recycling and quarrying.

The rear wall of the feed hopper can be lowered to facilitate direct loading from a GI CRUSHER. Screen speed can be hydraulically adjusted from the control console.

Technical features

Screen dimensions: 1,200 x 4,000 mm.

Standard equipment: dust suppression system, diesel transfer pump, magnetic separator.

Optional equipment: remote control, side conveyor, pump for the dust suppression system.
