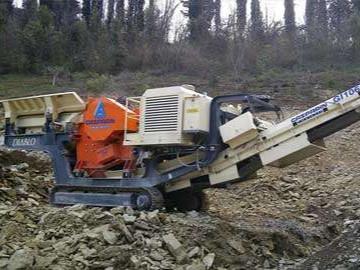

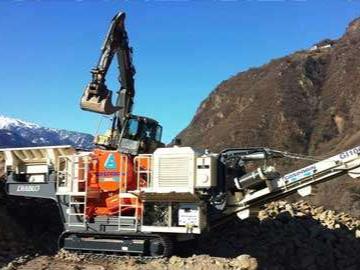

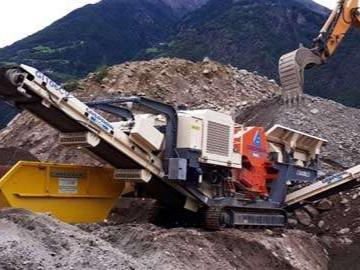

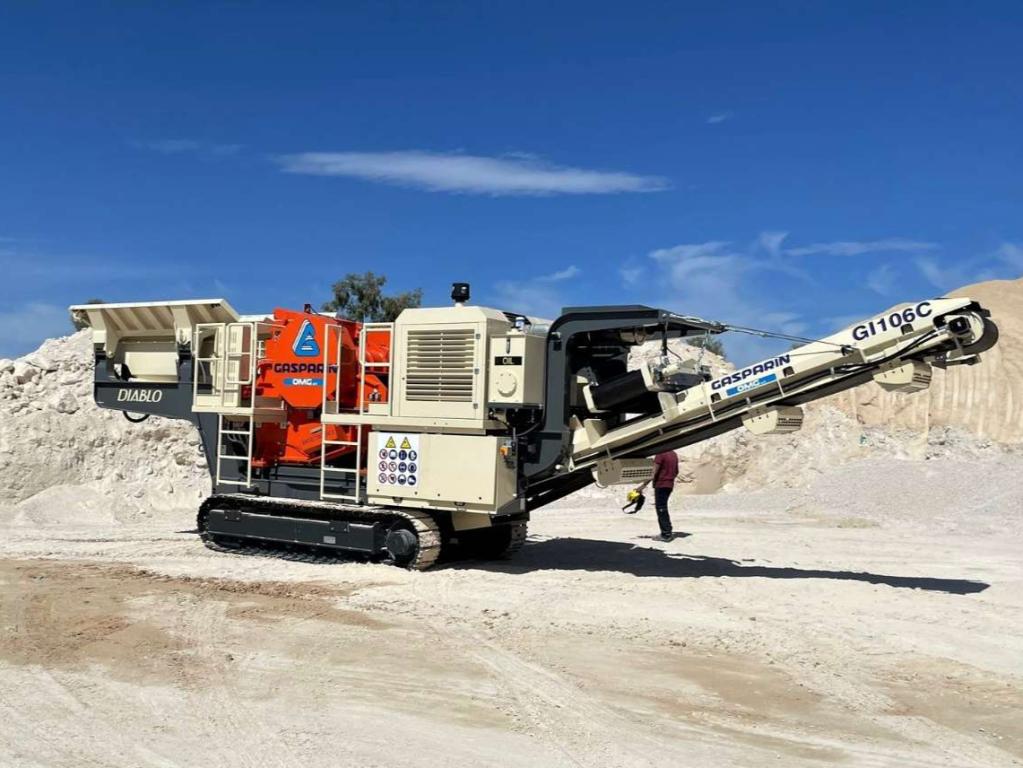

Gasparin OMG GI106 C/CV DIABLO

29-ton mobile crusher, efficient and easy to use.
The HCS system optimizes crushing while reducing operating costs.
Robust structure and easy maintenance access, ideal for natural rock and recycling.

Models
GI106 C: Jaw crusher
GI106 CV: Jaw crusher with vibrating screen

Features
Feed opening: 1,000 × 600 mm (40 to 170 mm output)
Operating weight: 28.5/29 tons
Standard equipment: dust suppression system, diesel transfer pump, magnetic separator
Options: remote control, side conveyor, pump for dust suppression system

HCS jaw crusher system
Gasparin OMG’s HCS system consists of two double-acting cylinders mounted in parallel, a movable crossbeam and a toggle plate.
When non-crushable material is present and the oil pressure in the cylinders exceeds the value set on the pressure switch, the system intervenes automatically: the cylinder closes again, causing the mobile jaw to retract and allowing the non-crushable material to be expelled.
This prevents the toggle plate from breaking and preserves the integrity of the crusher. At the same time, all hydraulic utilities are stopped to allow system reset and subsequent reactivation.
