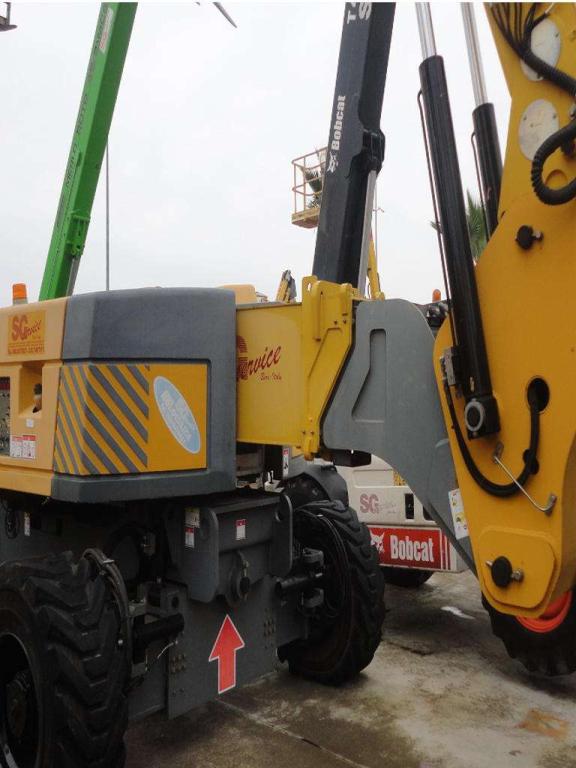

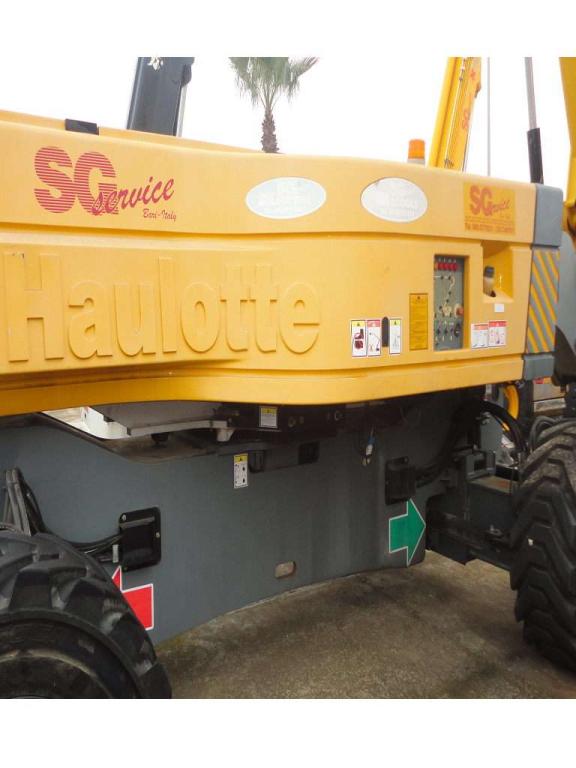

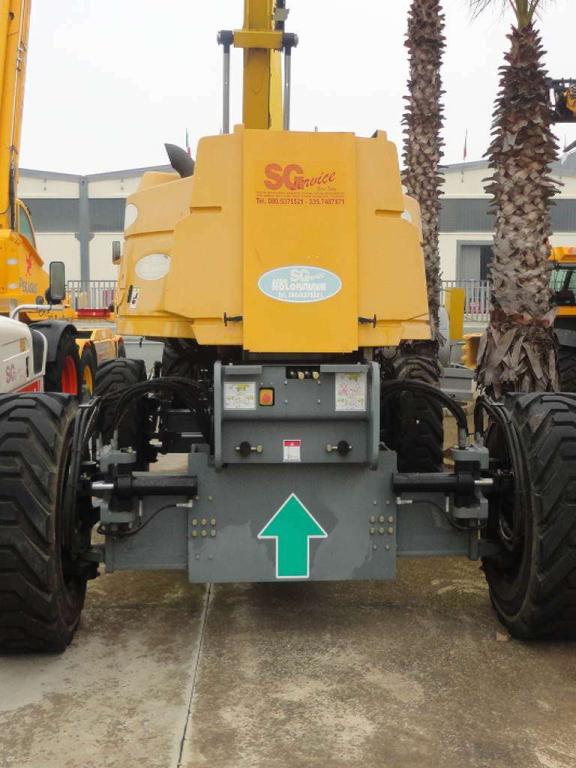

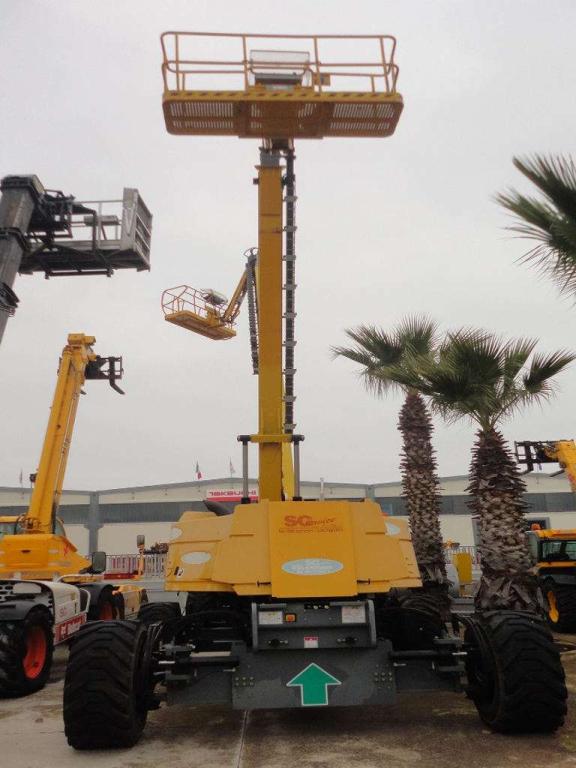

Haulotte HA32PX

SELF-PROPELLED ARTICULATED AERIAL PLATFORM
• Maximum basket capacity: 250kg
• Maximum lateral outreach: 21.30 m
• Articulation point at 11.35 m
• 4-wheel drive and steering
• Extendable and oscillating axles
• Maximum reachable slope of 45%
• Hydraulic differential lock and 38 cm ground clearance that allow use on all terrains
• Continuous 360° turret rotation
• Proportional and simultaneous controls for greater speed and precision
• Robust, reliable and easy to maintain
• Working height 31.8 m
• Floor height 29.8 m
• Overall length 11.20 m
• Overall width 2.50 m
• Width (axles deployed) 3.33 m
• Height at rest 2.70 m
• Wheelbase 3.50 m
• Ground clearance 38 cm
• Basket dimensions 2.44 m x 0.8 m
• Length in transport position 8.90 m
• Height in transport position 3.30 m
• Rear overhang 0.50 m
• Perkins Diesel engine - 64 kW - 87 HP
• Diesel tank 140 lt
• Weight 21,100 kg
