Comet Officine 14/2/6

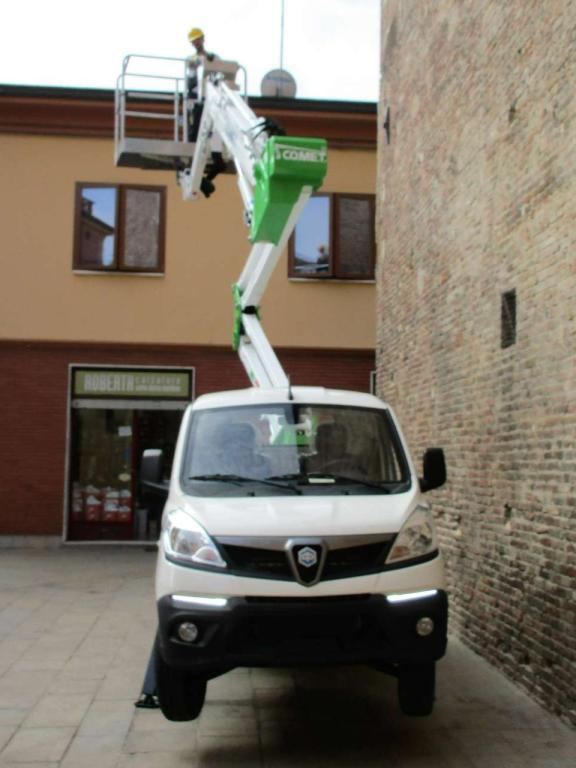

Work platform 14 meters of Piaggio Porter

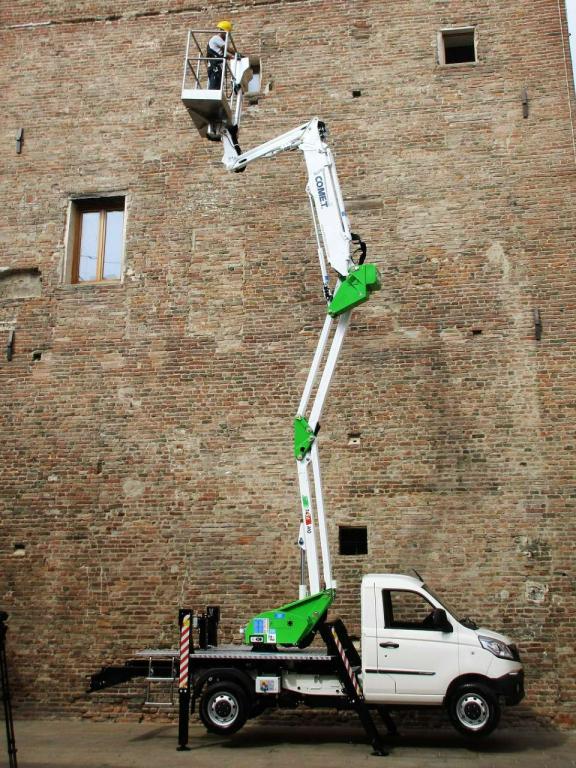

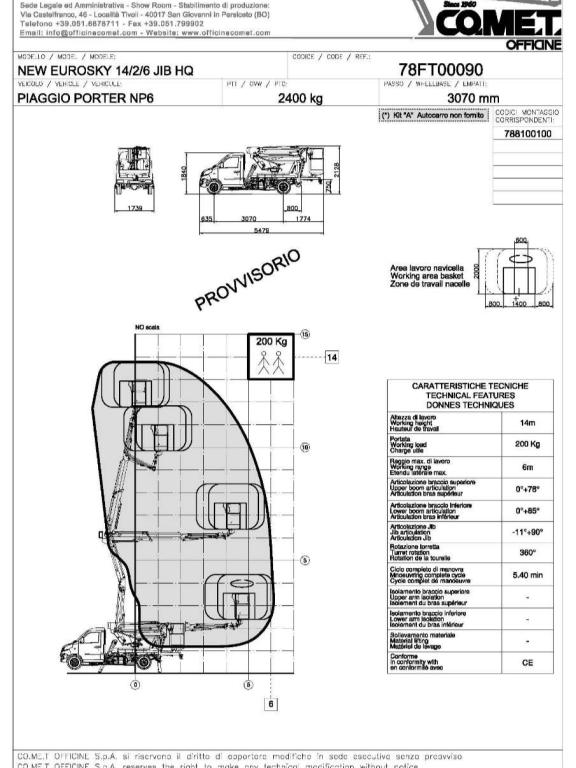

Working height mt.14, Platform height mt.12; Flow Kg.200 including 2-lost it; Maxi-mum reach mt.6.00; Capacity at Maximum Reach kg.200, turret rotation: 360 ° continuous turntable on; total height closed machine mm 2050;

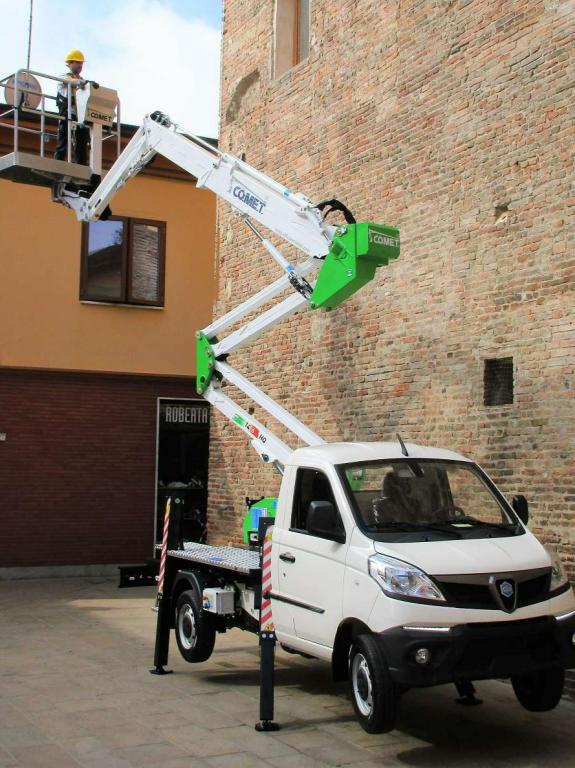

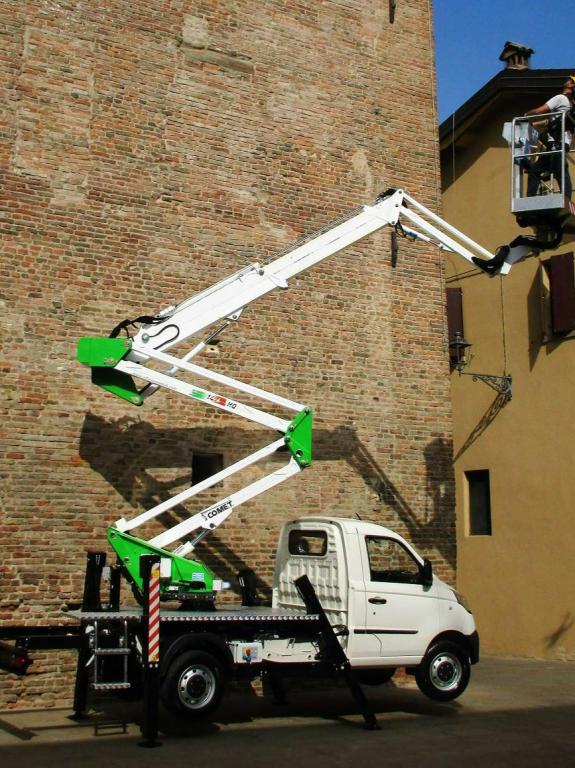

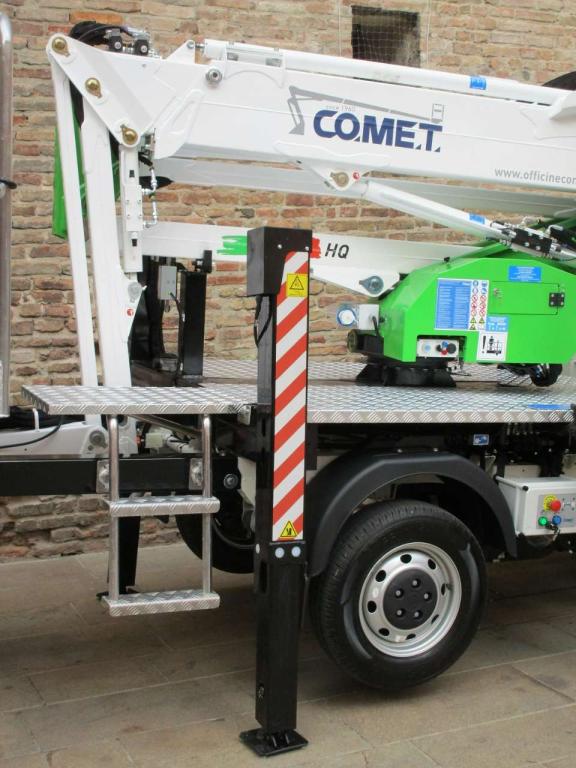

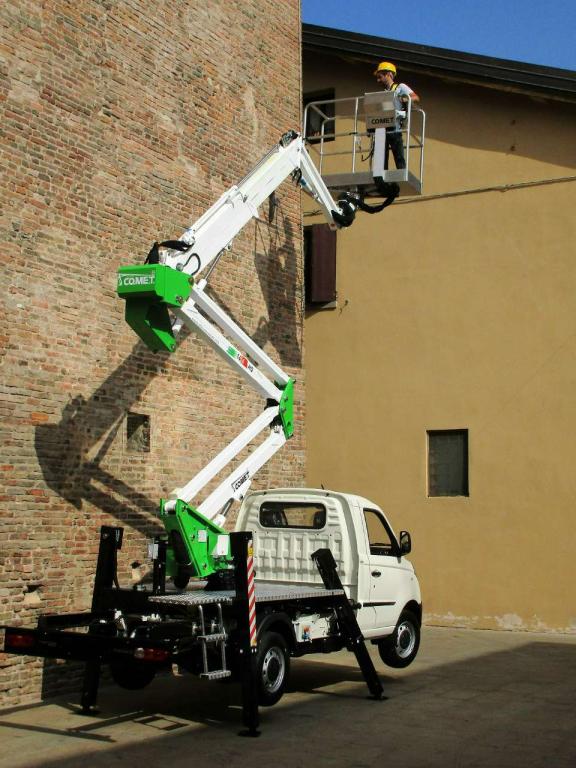

360 ° ROTATING TURRET ON FIFTH WHEEL, two-piece articulated arm with double-parallelogram but, articulated arm terminal JIB, Electric cables, overhead lines and pipes within the boom;

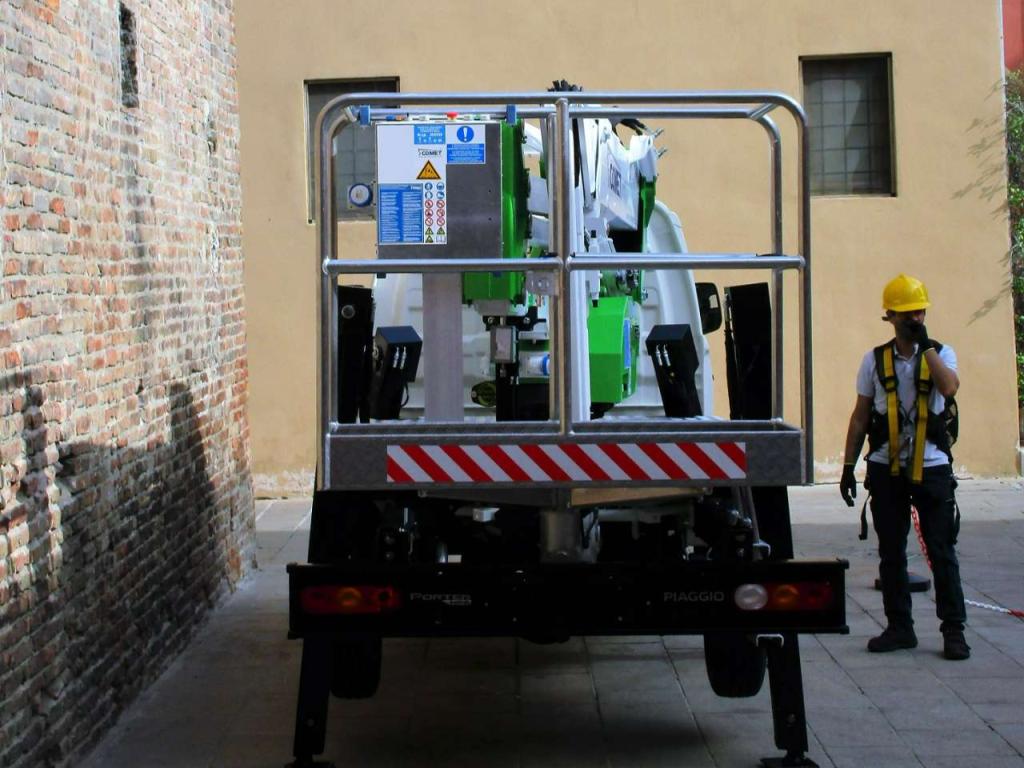

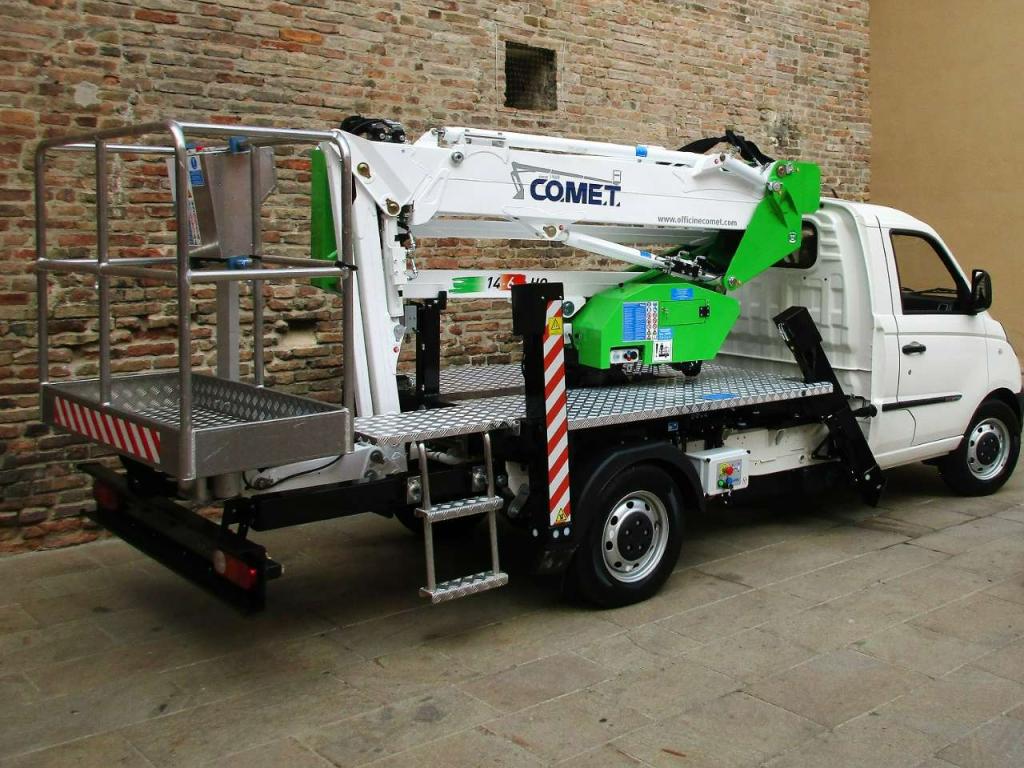

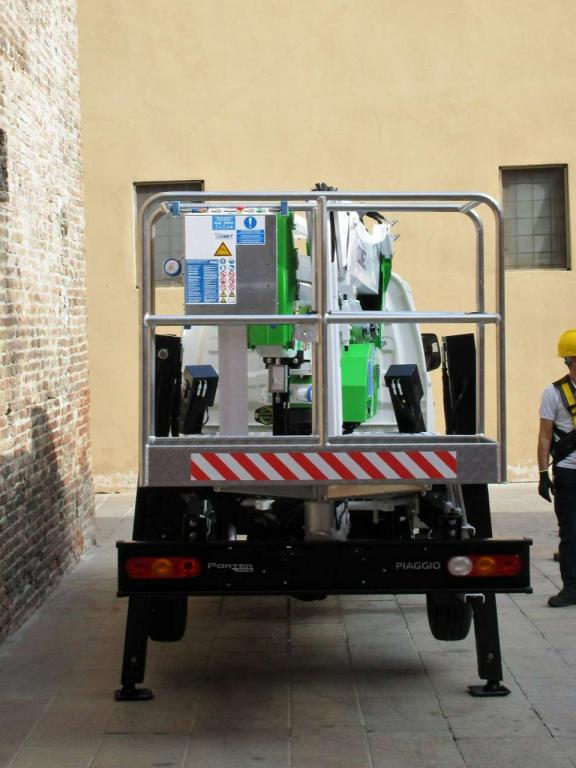

ALUMINUM BASKET: Size mm.1400x600x1100; cylinder protector of rota-tion, load cell for load control in the basket;
CONTROLS: fully hydraulic, proportional up to three simultaneous movements, placed in vertical position on the drum and protected by the cover. Power button and spe-gnimento motor overload and warning lights, warning lights and emergency button, light posi-tion of the central cestello- plumbing in the cage at low pressure (25 bar)
ACCESSORIES FITTED WITH:
Start / stop the vehicle engine from the ground controls and commands cestel-lo, Socket 230 V ac EC in the basket with power derived in the turret; anti-collision bar of the rack on the rear bumper and side rails installed rear-door-ttrezzi turret;
Ranked # 2 seat belts, electric motor auxiliary 220V to work indoors or in the cen-tri historical emissions-free, Anti-collision system walls (to block any movement if the shuttle touches the walls or other obstacles) Anti-collision system (car to block the movement -menti that may be accidentally bumping his arm against the cab of the vehicle)

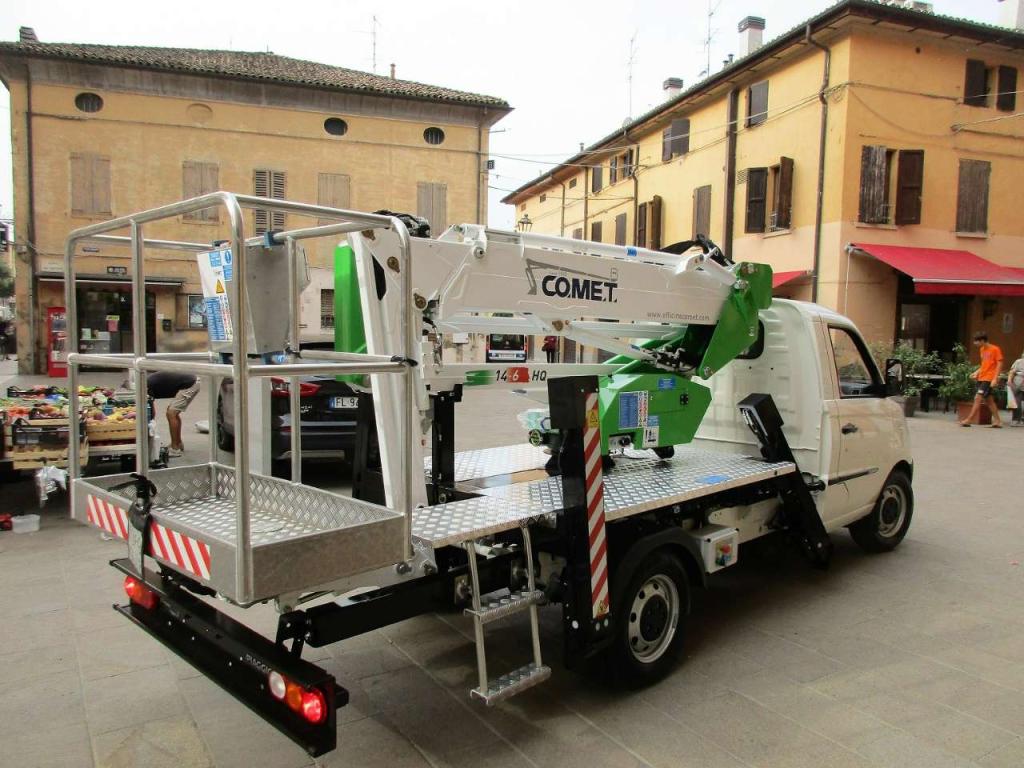

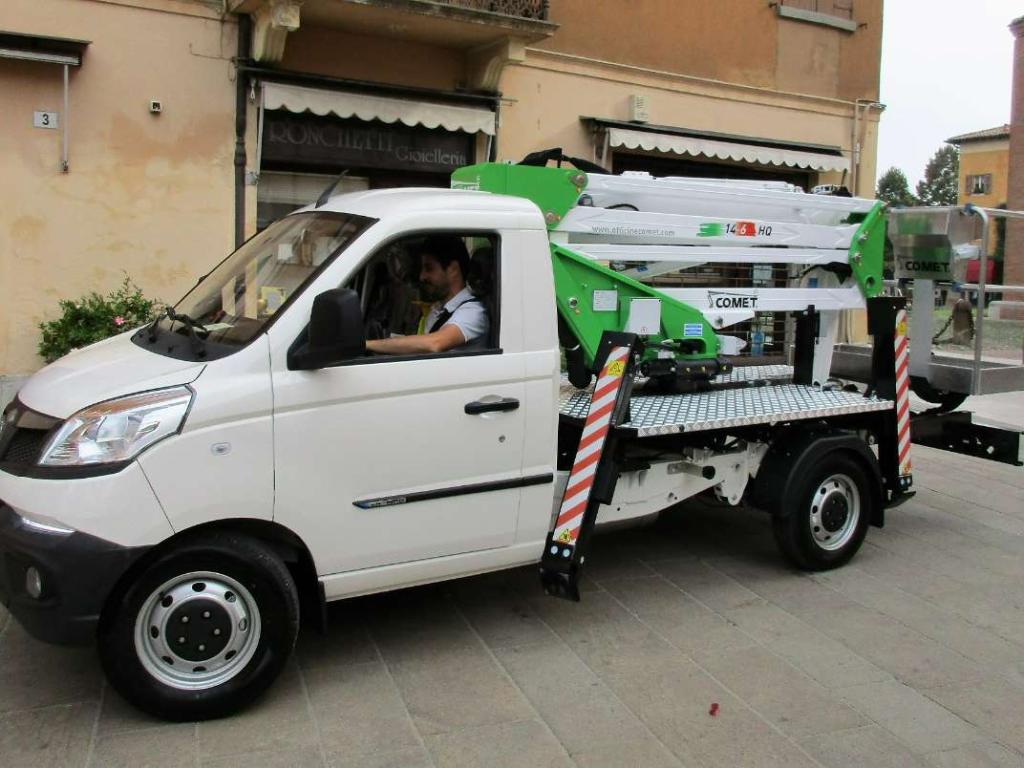

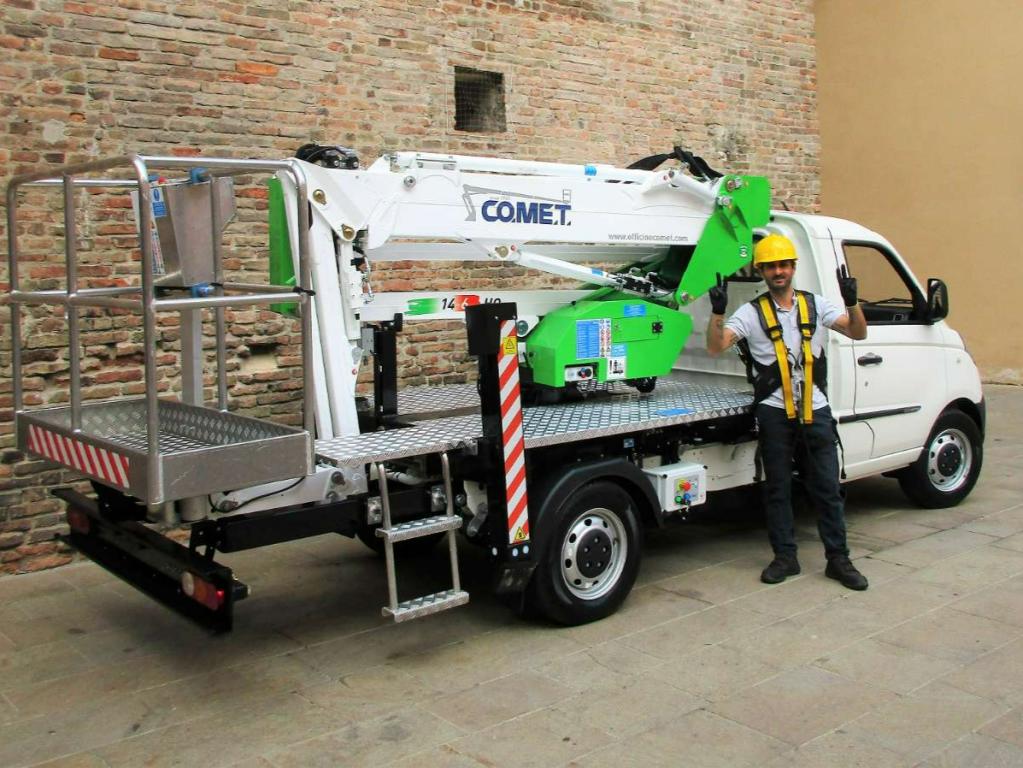

Mounted on the Piaggio Porter

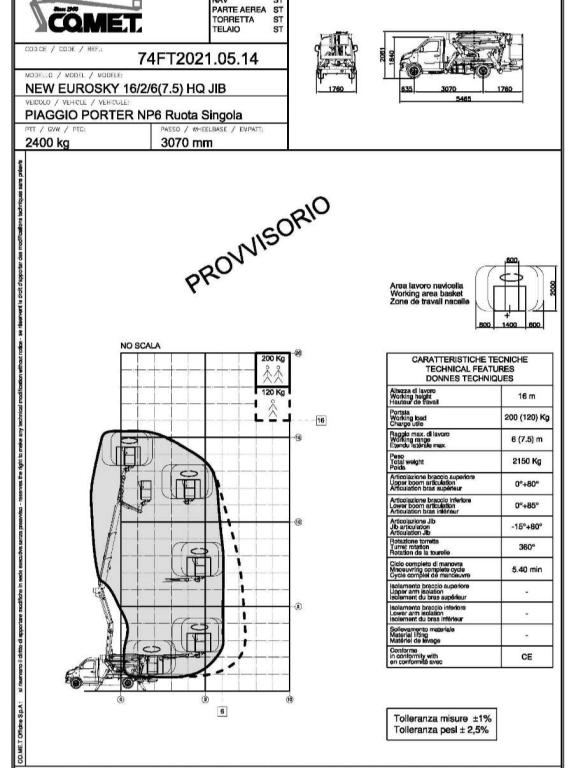

16 meter version available
